Description
General

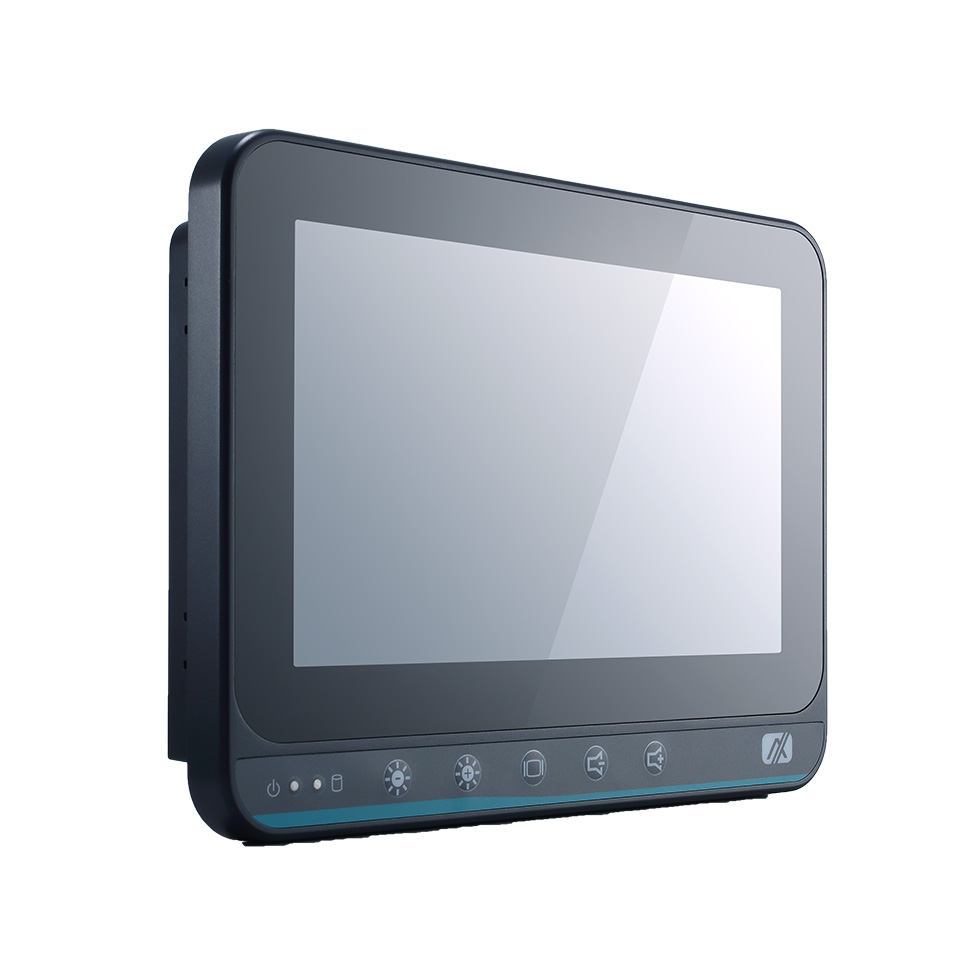

| Model | P107W-319 |
|---|---|
| Mounting | Panel mount, Wall mount, VESA arm, or Desktop Stand |
| Front Bezel | IP65, NEMA 4 rugged protection aluminum Chassis, plastic front bezel |
| Touchscreen | Projected capacitive multi-touch |
LCD Characteristics
| LCD Size | 7″ |
|---|---|
| Resolution | 1024 x 600 |
| Brightness (cd / m²) | 320 nits |
| Backlight | LED Backlight |
| Viewing Angle (H / V) | 145° / 150° |
Expansion Configuration
| M.2 | 1 x M.2 Key E for wireless module |
|---|---|
| PCIe |
1 x Full-size PCI Express Mini Card slot |
Processor
| CPU | Celeron (N3350) 1.1 GHz with Turbo Boost up to 2.4 GHz; or Pentium (N4200) 1.1 GHz with Turbo Boost up to 2.5 GHz |
|---|---|
| CPU Socket | FCBGA1296 |
| Chipset | SoC Integrated |
System Memory
| Standard RAM | 8GB |
|---|---|
| Maximum RAM | 8GB |
| RAM Type | DDR3L |
| RAM Socket | 1 x 204-pin SO-DIMM |
System Power
| Power Input | 9~24VDC |
|---|---|
| Power Connector |
1 x Screw type connector for powe |
| Power Button |
1 x Power button, 1 x AT/ATX switch |
BIOS
| BIOS Type | AMI UEFI |
|---|
Graphics
| GPU | Integrated in Intel® GFX |
|---|
USB
| USB 3.0 | 2 x USB 3.0 |
|---|

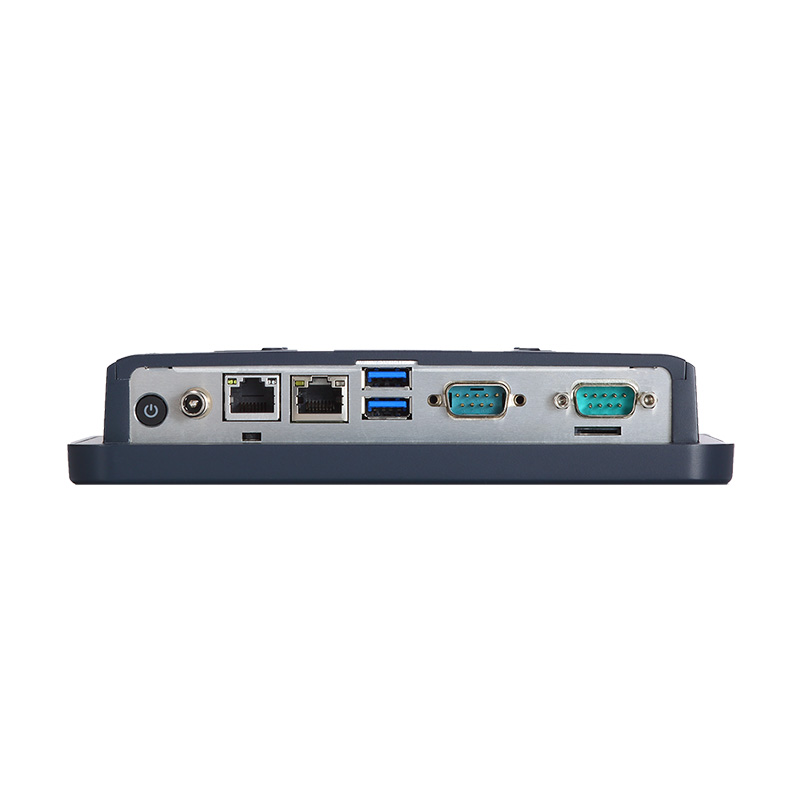

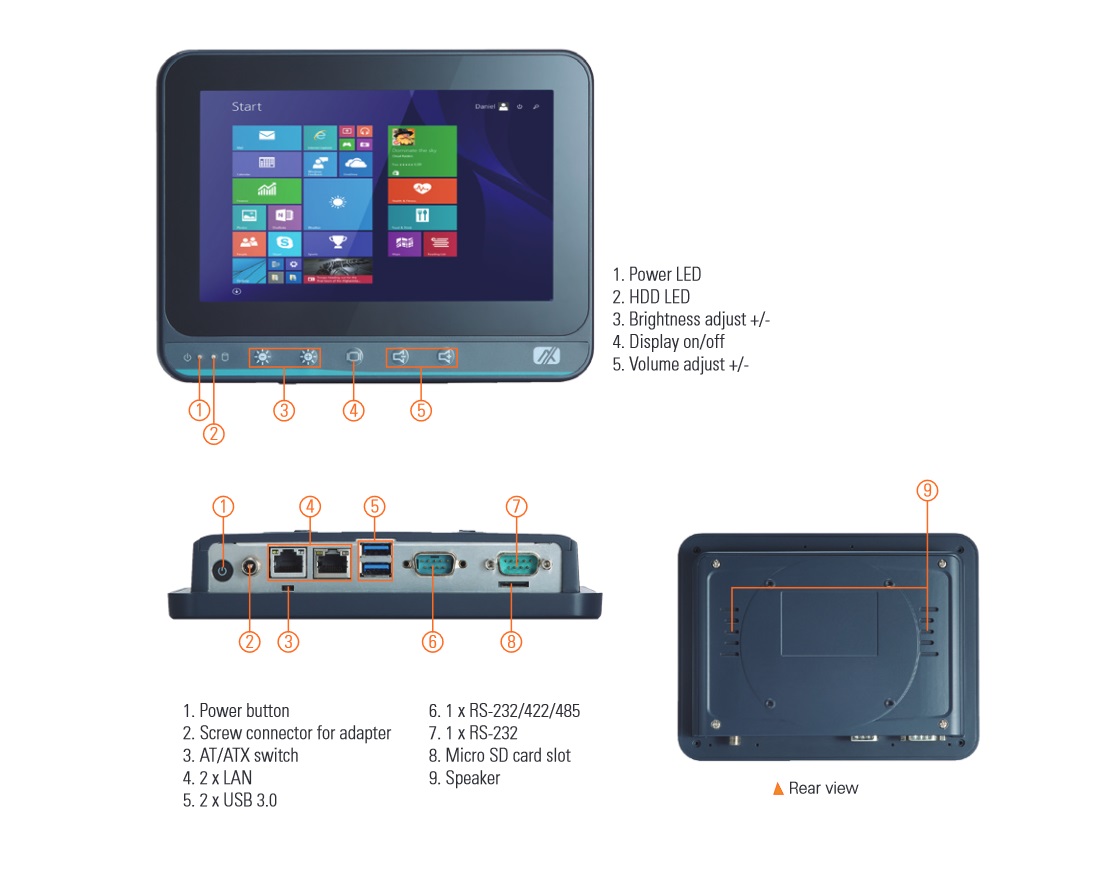

I/O
| Ethernet | 2 x 10/100/1000 Mbps |
|---|---|
| Serial | 1 x RS-232/422/485, 1x RS-232 |
| Audio | 2 x Built in Speakers (Rear Facing) |
System Characteristics
| Drive Capacity | 1 x MicroSD, 1 x mSATA |
|---|---|
| Watchdog Timer | 255 levels, 0~255 sec. |
| Operating Temperature | 0°C to +50°C (+32°F to +122°F) |
| Relative Humidity | 20% to 90% @ +40°C; non-condensing |
| Vibration Resistance | 2G, 5 to 500Hz, random for SSD |
| Power Consumption |
20.4W |
| Certifications | CE, FCC class B |
| Weight | 0.75 kg (1.65 lb)/2.0 kg (4.41 lb) |

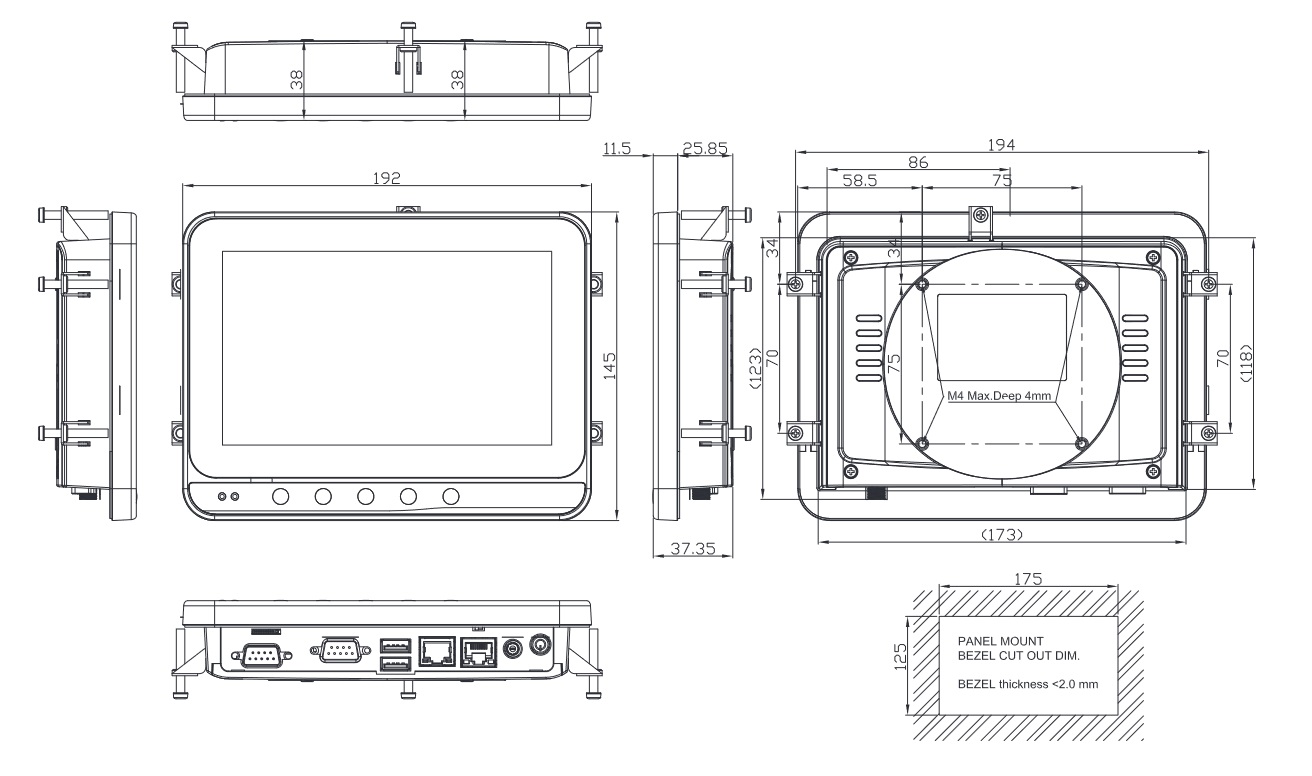

| Dimensions | 192 mm (7.56″) (W) x 37.4 mm (1.47″) (D) x 145 mm (5.7″) (H) |
| Packing Dimensions | 380 mm (15″) (W) x 100 mm (4″) (D) x 280 mm (11″) (H) |
