Description
General
| Model | ICO110 |
|---|---|

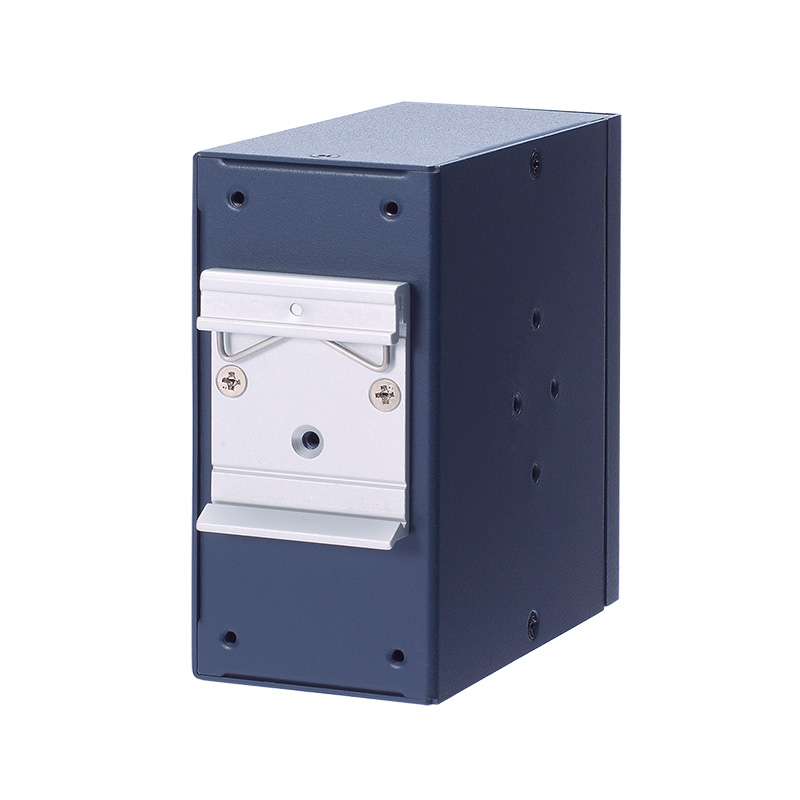

| Mounting | DIN-rail, wall mount |
| Color | Silver |
Expansion Configuration
| Mini Express | 1 x half-size Rev. 1.2 PCI Express Mini Card slot: mini mSATA |
|---|
Processor
| CPU | Intel® Celeron® N3350 2C @ 1.1 GHz, 6W TDP |
|---|---|
| Chipset | SoC Integrated |
System Memory
| Standard RAM | 8GB |
|---|---|
| Maximum RAM | 8GB |
| RAM Type | DDR3L-1600 |
| RAM Socket | 1x 204-pin SO-DIMM |
Hard Drive
System Power
| Connector | 1 x terminal block |
|---|---|
| Power Input Range | 9 to 36 VDC |
| Protection | OVP, Reverse protection |
BIOS
| BIOS Type | AMI UEFI |
|---|
Graphics
| GPU Interface | 1 x HDMI |
|---|
USB
| USB 3.0 | 4 x USB 3.0 |
|---|
I/O
| Ethernet | 2 x RJ-45 isolated GbE LAN Realtek RTL8119I Isolation voltage: 1.5 k |
|---|---|
| Serial | 1 x RS-232/422/485 |
System Characteristics
| Construction | Aluminum Extrusion and Heavy-Duty Steel with IP30 Protection |
|---|---|
| Drive Capacity | 1 x mSATA |
| Front Panel Indicators | 1 x LED indicator for SATA drive activity 1 x LED indicator for power |
| TPM | TPM 2.0 |
| Cooling Fans | None |
| Watchdog Timer | 255 levels, 1 ~ 255 sec. |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) with W.T. peripheral |
| Weight | 0.3 kg (0.67 lb)/0.45 kg (0.99 lb) |
| Relative Humidity | 0% to 95% relative humidity, non-condensing |
| Vibration Resistance | 3 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating) |

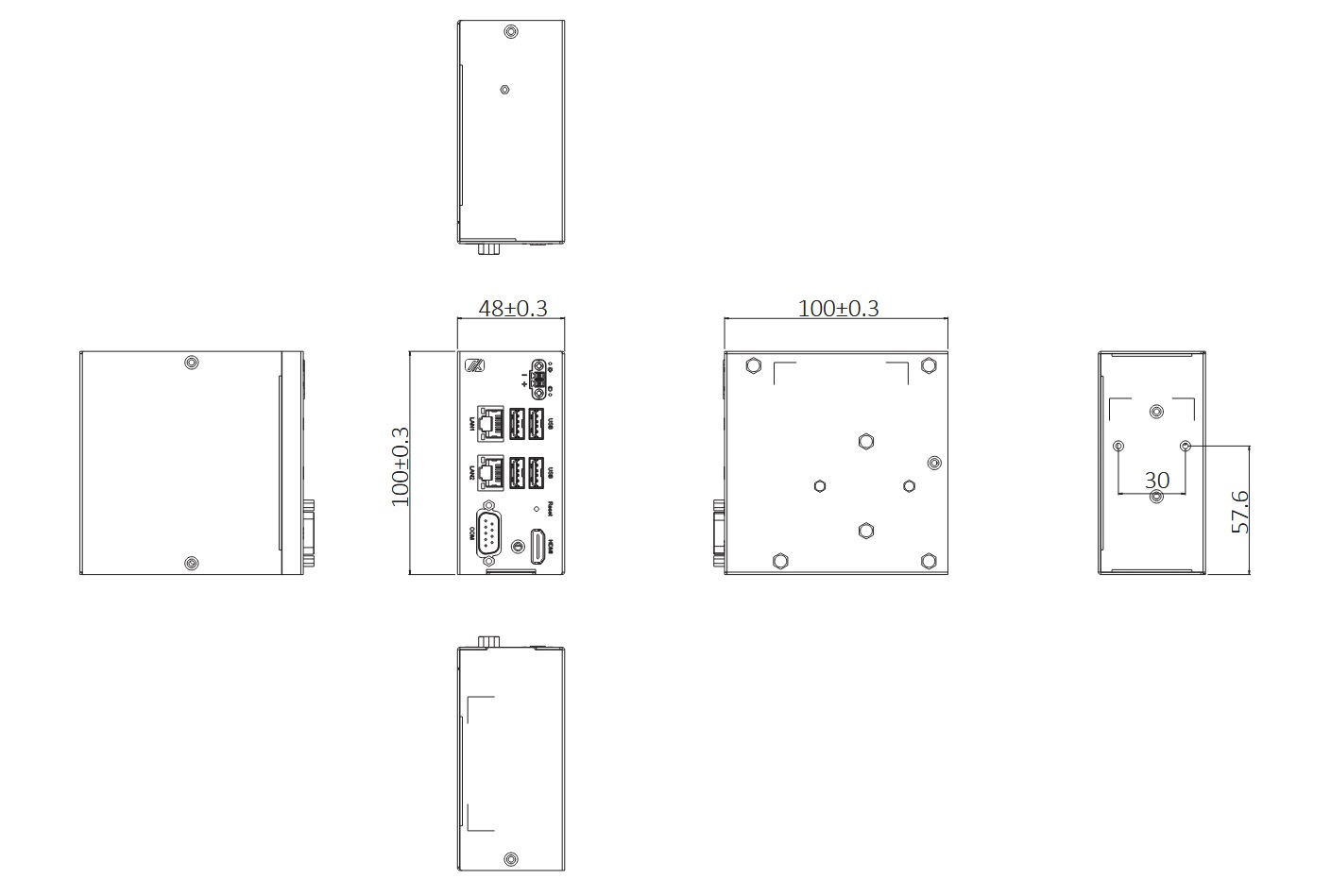

| Dimensions (W x D x H) | 48 x 100 x 100 mm (1.89″ x 3.94″ x 3.94″) |
Compliance
| Certification | CE (Class A), FCC (Class A), N 55035 (Class A), FCC part 15 B (Class A) |
|---|
