Description
General
| Model | EBOX671B |
|---|---|
| Color | Silver |
Expansion Configuration
| M.2 | 1 x M.2 Key M 2280 socket (for storage) |
|---|---|
| M.2 | 1 x M.2 Key E 2230 socket (for Wi-Fi 6E) |
| M.2 | 1 x M.2 Key B 3052 socket (for 5G) |
| Mini Express |
1 x Full-size PCI Express Mini Card slot (USB 2.0 + PCIe + SIM + mSATA signal) |
| SIM |
1 x Internal SIM slot for PCIe Mini Card slot |
| MXM |
1 x MXM3.1 type A connector |
| mSATA |
1 x mSATA (enable in BIOS setting) |
Processor
| CPU | 12th/13th gen Intel Core i9, i7, i5, i3processors (TDP up to 35W/65W) |
|---|---|
| CPU Socket | LGA1700 |
| Chipset | Intel R680E |
System Memory
| Standard RAM | 8GB |
|---|---|
| Maximum RAM | 64GB |
| RAM Type | DDR5 |
| RAM Socket | 2 x 262-pin SO-DIMM (up to 32GB per slot) |
Operating System
| Operating System | Windows 11 Professional |
|---|
Hard Drive
| SSD | 250GB SSD |
|---|
System Power
| Power Connection |
1 x 3PIN Phoenix type VDC power input connector |
|---|---|
| Power Input | 9 to 36 VDC with ACC ignition |
| Power Protection | OCP (over current protection), SCP (short circuit protection), UVP (under voltage protection), OVP (over voltage protection), Reverse protection |
BIOS
| BIOS Type | AMI |
|---|
Graphics

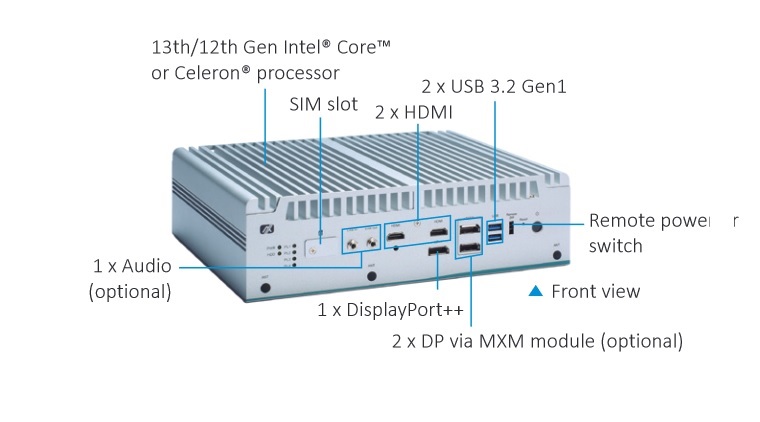

| GPU Interface | 2 x HDMI 1.4b (1 x lockable); 1 x DisplayPort 1.4a, 2 x DisplayPort 1.4a via optional MXM kit |
|---|
USB
| USB 3.2 | 2 x USB 3.2 Gen1, 4 x USB 3.2 Gen2 |
|---|
I/O

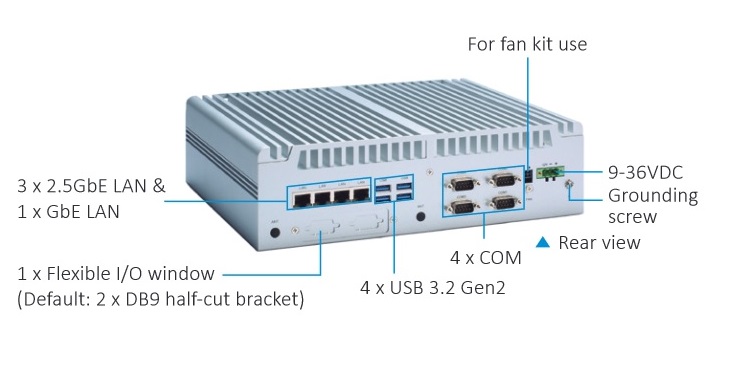

| Ethernet | 3 x 2.5 GbE (Intel® i226-IT), 1 x GbE LAN (Intel® i219-LM ( Optional 4-Port POE by request) |
|---|---|
| Serial | 2 x RS-232/422/485 with autoflow, 2 x RS-232 |
| Audio | 1 x Audio (MIC-in/Line-out); by request |
| DIO | N/A |
| Flexible I/O Window |
1 x Flexible IO Window (Default: 2 x DB9 half-cut bracket) |
System Chassis Characteristics
| Construction | Aluminum Extrusion and Heavy-Duty Steel with IP40 Protection |
|---|---|
| Drive Capacity | 2 x 2.5″ SATA HDD/SSD (up to 15 mm height; RAID 0,1 supported) |
| Mounting Options |
Optional Din-Rail and Wall Mount |
| Panel Indicators | 1 x Green LED for system power-on 1 x Orange LED for HDD active 4 x Programmable Green LED |
| Panel Controls | 1 x AT/ATX quick switch 1 x ATX power switch 1 x Remote switch |

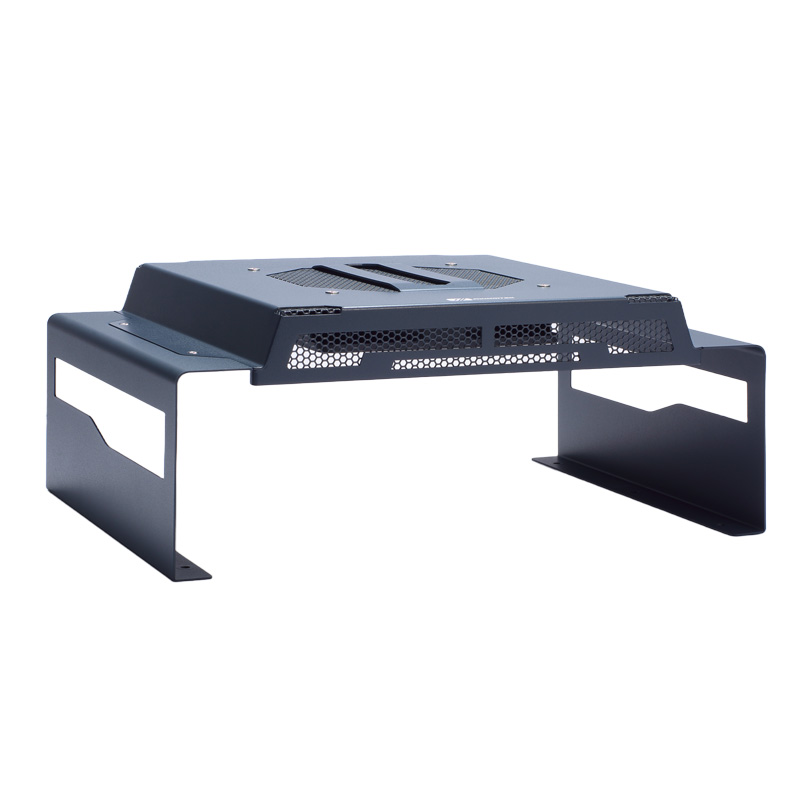

| Cooling Fans | Passive (Optional External Cooling Fan Kit Available) |
| TPM | TPM 2.0 |
| Watchdog Timer | 255 levels, 1 to 255 sec |
| Antennae Port | 5 x Antenna opening |
| Operating Temperature | Without MXM module: -40°C to +65°C (-40°F to +140°F) (with W.T. DRAM & SSD, CPU TDP 35W) -40°C to +55°C (-40°F to +122°F) (with W.T. DRAM & SSD, CPU TDP 65W) With MXM module: -40°C to +55°C (-40°F to +122°F) (with W.T. DRAM & SSD & MXM kit, CPU TDP 35W) |
| Shock | IEC 60068-2-27 (w/ SSD: 50G, half-sine, 11 ms duration) |
| Relative Humidity | 10% to 90%, non-condensing |
| Vibration Endurance | IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5- 500 Hz, 1 hr/axis) |
| Package Vibration | MIL-STD-810G 514.6C-II compliance |
| Weight (Net/Gross) | 4.9 kg (10.8 lb)/7 kg (15.43 lb) |
| Dimensions | 280 mm (11.02″) (W) x 210 mm (8.26″) (D) x 80.5 mm (3.16″) (H) |
| Certifications | CE, FCC Class A, UKCA |
