Description
General
| Model | EBX310 |
|---|---|

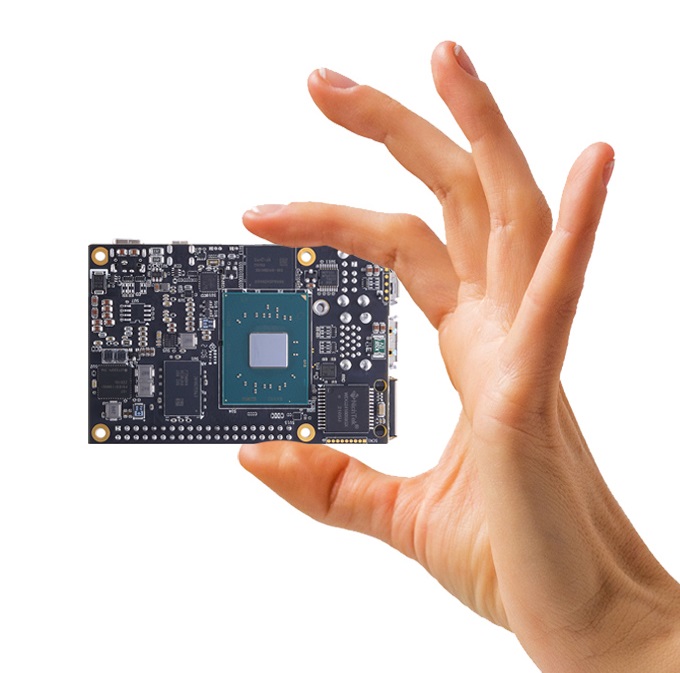

| Board | 1.8-inch Single Board Computer with Case |
| Color | Black |
Processor
| CPU | Intel® Celeron® processor N3350 1.1 GHz (2.4GHz boost) |
|---|---|
| Chipset | SoC Integrated |
System Memory
| Standard RAM | On-board LPDDR4 (2GB or 4GB option) |
|---|
Storage
| Storage | 32GB or 64GB eMMC on-board Storage |
|---|
System Power
| Supported Power Input | 9V/3A; 12V/3A; 15V/3A;20V/3A |
|---|---|
| Power Input Connection |
USB-C type |
| Power Supply |
Included with USB-C cable |
BIOS Features
| BIOS Type | AMI BIOS |
|---|
Operating System
| Supported Operating Systems |
Linux, Android, Windows 10 |
|---|
Graphics
| GPU | Intel® integrated Gen9 graphic engine; Shared System Memory |
|---|---|

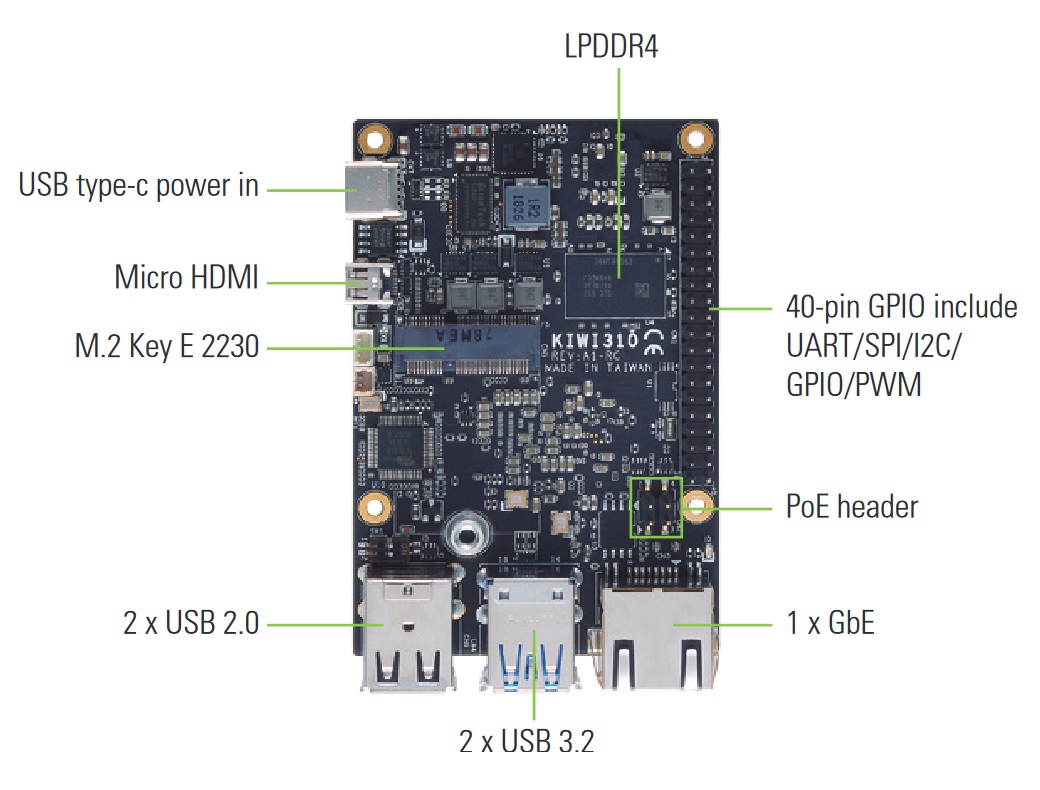

| GPU Interface | 1 x Micro HDMI |
Ethernet
| Ethernet Port 1 | 1 x 10/100/1000 Mbps Ethernet with REALTEK RTL8111; support Wake-on-LAN, PXE Boot ROM |
|---|
USB
| USB 2.0 | 2 x USB 2.0 |
|---|---|
| USB 3.2 | 2 x USB 3.2 Gen1 |
| USB C | 1 x USB Type C (For Power Input) |
I/O
| M.2 | 1 x M.2 Key E (USB2.0, PCIe) in 2230 |
|---|---|
| Serial | N/A |
| DIO | 40-pin GPIO includes UART, I2C, SPI, GPIO, PWM |
Board Characteristics

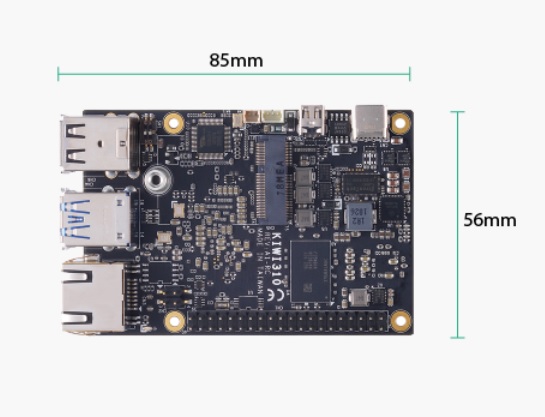

| Board Dimensions |
85mm × 56mm |
|---|---|
| Board Thickness |
1.6mm |
| Watchdog Timer | 255 levels, 1 to 255 sec |
| Operating Temperature | 0°C to +40°C (+32° F to 104° F) |
| Relative Humidity |
10% – 95% relative humidity, non-condensing |
| Heatsink | Included |
| Battery | Lithium 3V/220 mAh |
Chassis Characteristics
| Chassis Construction | Steel |
|---|---|
| Chassis Drive Capacity |
N/A |

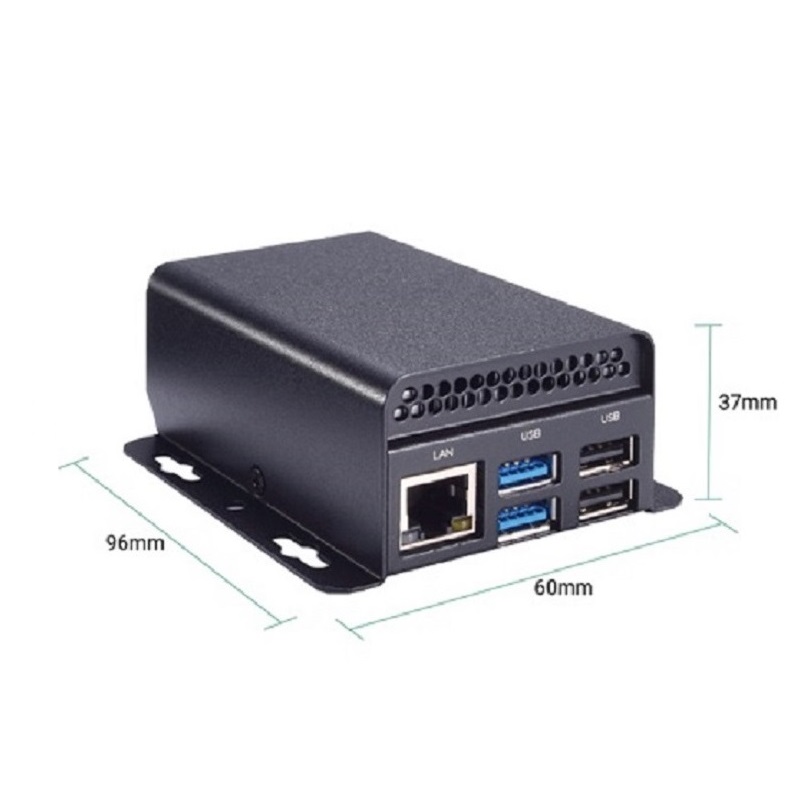

| Chassis Dimensions |
60 (2.36″) (W) * 96 (3.78″) (D) *37 (1.46) (H) mm |
| Cooling Fans | N/A |
| Chassis Operating Temperature | 0°C to +40°C (+32° F to 104° F) |
| Relative Humidity |
10% – 95% relative humidity, non-condensing |
