Description
General
| Model | P512 |
|---|---|
| Mounting | Panel Mount, VESA Mount, Wallmount |

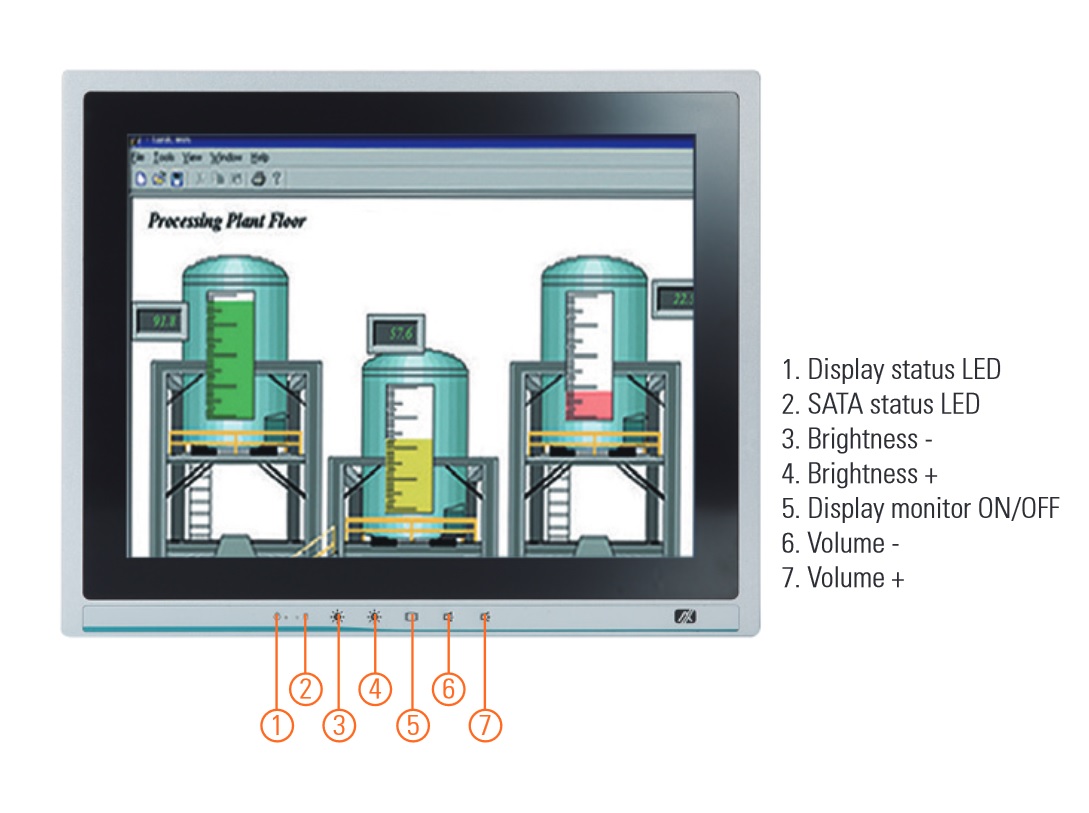

| Front Bezel | Aluminum w/ IP65/NEMA 4 rugged protection |
| Touchscreen | 5-wire resistive typ, Light transmission 79%, 1 million activations (typical) at a single point |
LCD Characteristics
| LCD Size | 12.1″ |
|---|---|
| Resolution | 1024 x 768 pixels |
| Brightness (cd / m²) | 500 nits |
| Viewing Angle (H / V) | 160° / 140° |
Expansion Configuration (You Choose)
| PCIe | 1x PCIex4 (optional) |
|---|---|
| PCI | 1x PCI (optional) |
Processor
| CPU | 6th/7th Gen Intel Core i7/i5/i3 |
|---|---|
| Socket | LGA1151 |
| Chipset | Intel H110 |
System Memory
| Standard RAM | 4GB |
|---|---|
| Maximum RAM | 32GB |
| RAM Type | DDR4 |
| RAM Socket | 2 x 288-pin DDR4-2133 |
Storage
| HDD | 250GB |
|---|
System Power
| Power Input | 100 to 240 VAC, 200W |
|---|---|
| Power Consumption | 121W |
BIOS
| BIOS Type | AMI UEFI BIOS |
|---|
Graphics
| GPU | Integrated Intel HD GFX |
|---|---|
| GPU Interface | LCD (Main); 1 x HDMI, 1 x VGA , 1 x DisplayPort |
USB
| USB 3.0 | 4x USB 3.0 |
|---|

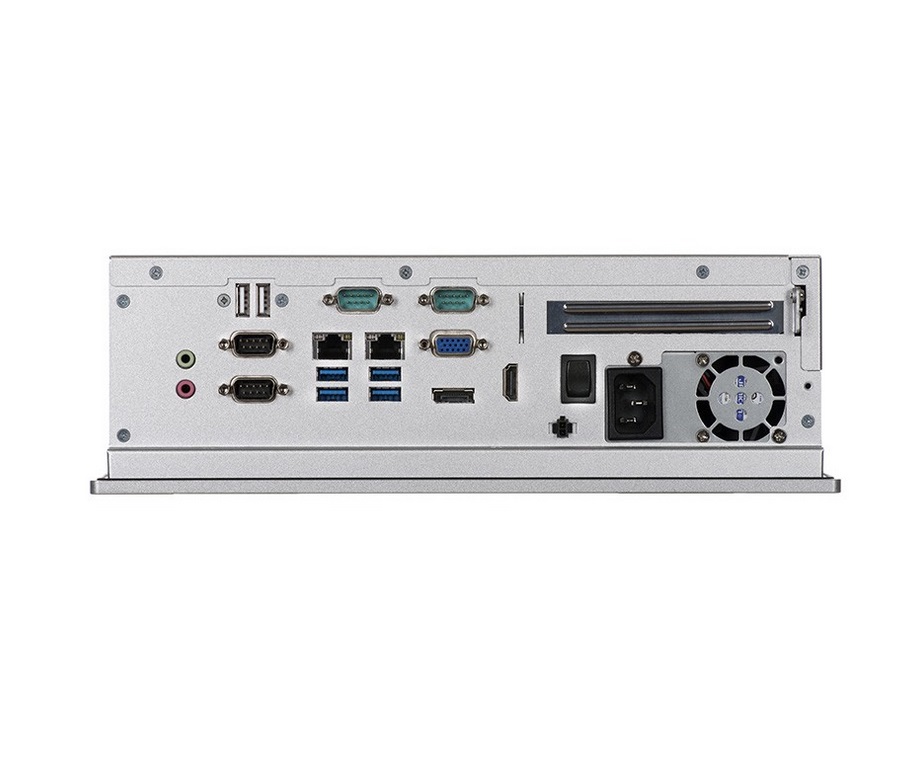

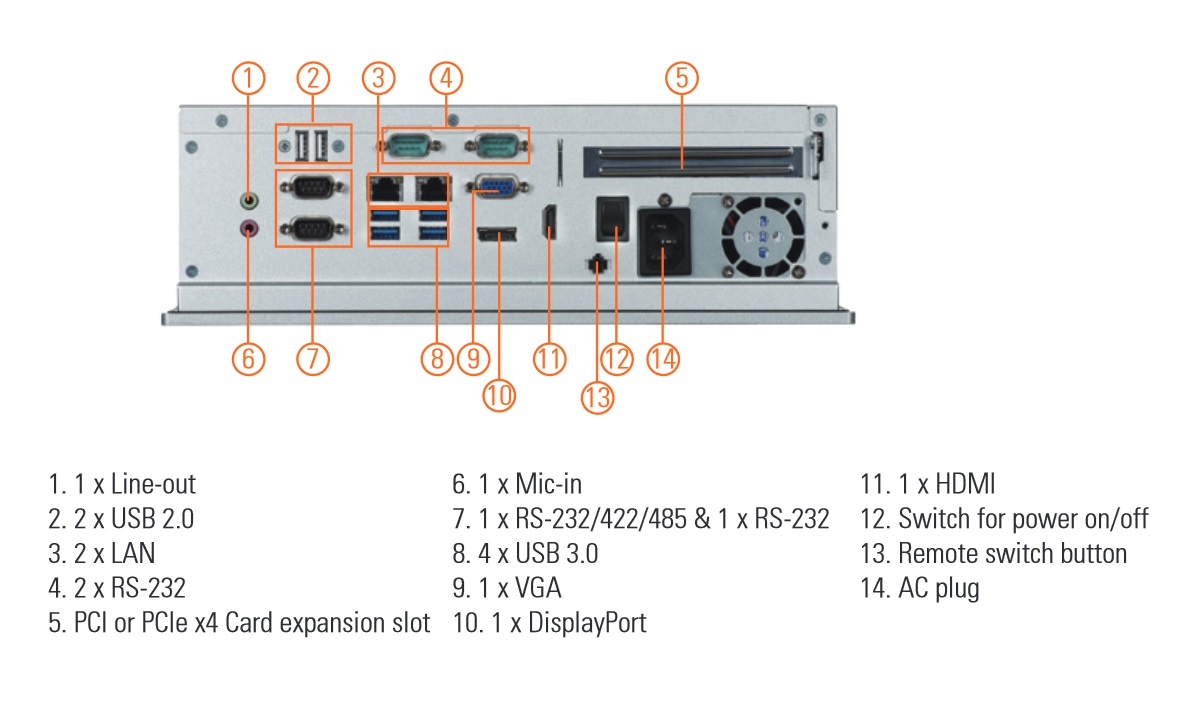

I/O
| Ethernet | 2x 10/100/1000 Mbps Ethernet (Intel® i219-LM/i211-AT) |
|---|---|
| Wifi |
Optional Wifi kit |
| Serial | 1 x RS-232/422/485 & 3 x RS-232 |
| Audio | Built-in Speaker, 1 x Mic-in, 1x Line-out |
System Characteristics
| Drive Capacity | 1x 2.5″ SATA (9.5 mm height) |
|---|---|
| TPM | N/A |
| Watchdog Timer | 255 levels, 0~255 sec. |
| Certifications | CE |
| Operating Temperature | 0°C to +50°C (+32°F to +122°F) |
| Weight (Net/Gross) |
4.2 kg (9.26 lb)/6.3 kg (13.89 lb) |
| Relative Humidity | 10% to 90% @ +40°C, non-considering |
| Vibration Resistance | 1.0G, 5 – 500 Hz, random |

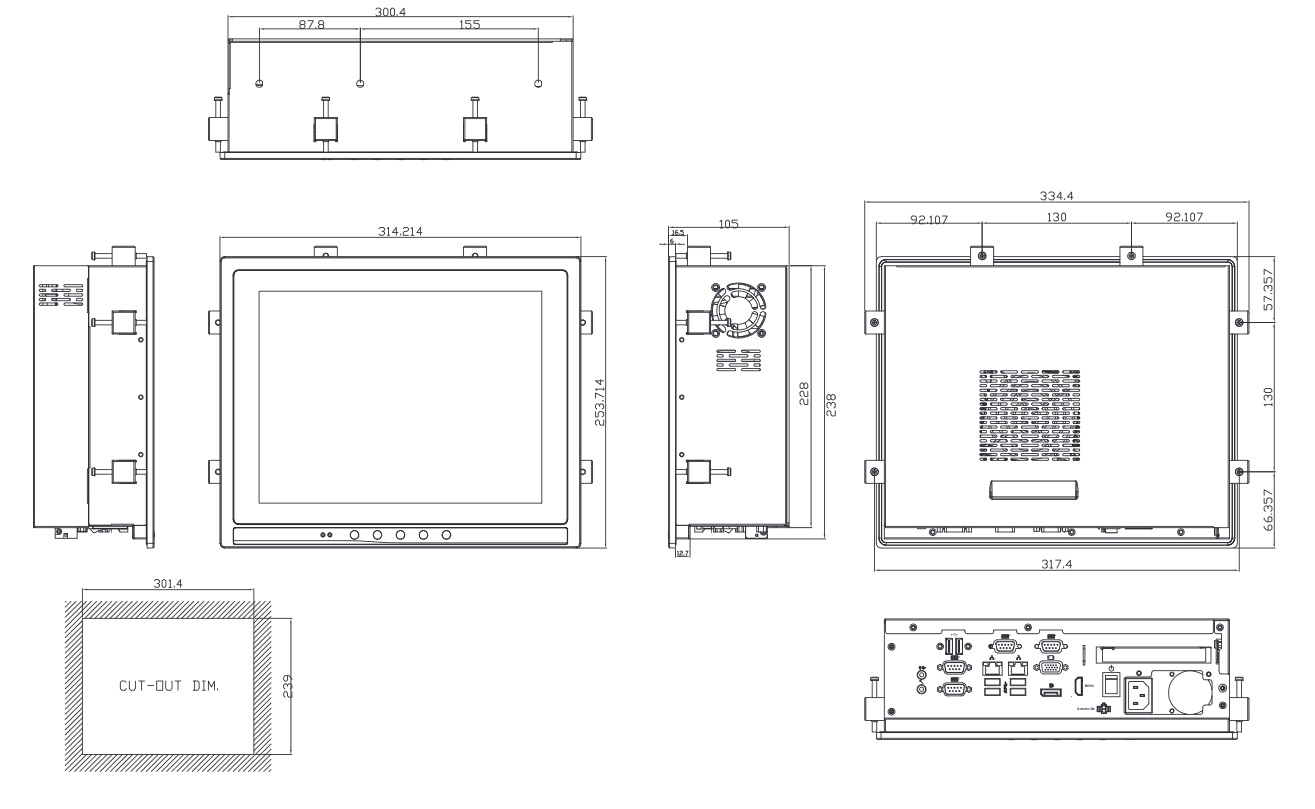

| Dimensions (W x D x H) | 314.2 mm (12.37″) (W) x 105 mm (4.13″) (D) x 253.7 mm (9.99″) (H) |
