Description
General
| Model | P317B |
|---|---|
| Mounting | Panel Mount, VESA Mount, Desktop Stand, Wallmount |
| Front Bezel | Aluminum w/ IP65 Protection |
| Touchscreen | 5-wire resistive multi-touch |
LCD Characteristics
| LCD Size | 17″ SXGA TFT LCD |
|---|---|
| Resolution | 1280 x 1024 |
| Brightness (cd / m²) | 350nits |
Expansion Configuration
| PCIe | 1 x M.2 Key E 2230 with PCIe x1 and USB 2.0 1 x PCI Express Mini Card (USB+PCIe signal+nano SIM slot “LTE”) |
|---|---|
| PCI | None |
Processor
| CPU | 12th/13th Gen Intel® Core™ i7/i5/i3 (up to 35W) |
|---|---|
| Socket | LGA1700 |
| Chipset | Intel H610 |
System Memory
| Standard RAM | 8GB |
|---|---|
| Maximum RAM | 32GB |
| RAM Type | DDR4 |
| RAM Socket | 1 x 260-pin DDR4-3200 SO-DIMM |
Storage
| HDD | 250GB |
|---|
System Power
| Power Input | 10 to 36V DC-in (typical 12/24VDC) via terminal block |
|---|---|
| Power Consumption | 120W |
| Power Mode |
1 x button for power on/off (ATX), with 1 x AT/ATX mode switch; 1 x Remote Power Switch |
BIOS
| BIOS Type | AMI UEFI BIOS |
|---|
Graphics
| GPU | Intel® UHD Graphics 770 |
|---|---|
| GPU Interface | LCD (1280 x 1024), 2 x HDMI v1.4 |
USB
| USB 2.0 | 2 x USB 2.0 (Type A) |
|---|---|
| USB 3.2 | 2 x USB 3.2 Gen1 (Type A) |

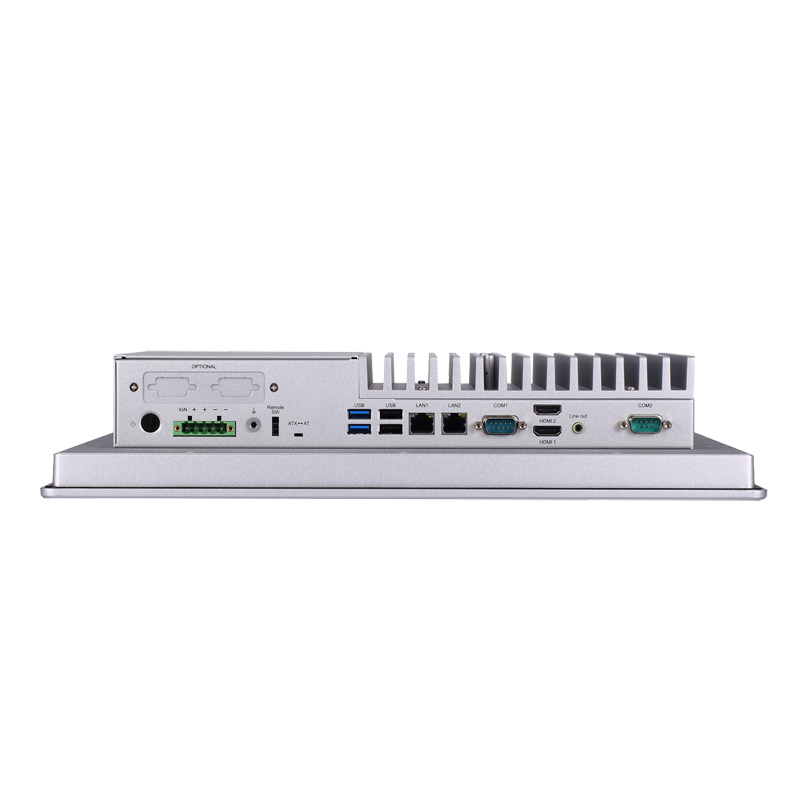

I/O
| Ethernet | 1 x RJ-45 for 10/100/1000Mbps (Intel® I219-V) 1 x RJ-45 for 10/100/1000/2500Mbps (Intel® I225-V) |
|---|---|
| Wifi |
N/A |
| Serial | 1 x RS-232; 1 x 9-pin D-sub Male RS-232/422/485 |
| Audio | 1 x Line-out 3.5mm jack |
System Characteristics
| Drive Capacity | 1 x 2.5” SATA HDD(WT)/SSD (7mm and 9.5mm height, removable) |
|---|---|
| TPM | TPM 2.0 |
| Watchdog Timer | 255 levels, 0~255 sec. |
| Certifications | CE Class A, IEC/EN61000-6-4, IEC/EN61000-6-2 FCC 47 CFR Part 15 Subpart B (Class A) UKCA RoHS standard |
| Operating Temperature | -10°C to +50°C (35W CPU/SSD) |
| Weight | 7.36 kg (16.22 Ib)/11 kg (24.25 Ib) |
| Relative Humidity | 10% to 95% @40°C; non-condensing |
| Vibration Resistance | 1G/5 to 500Hz/operation (SSD, random) |

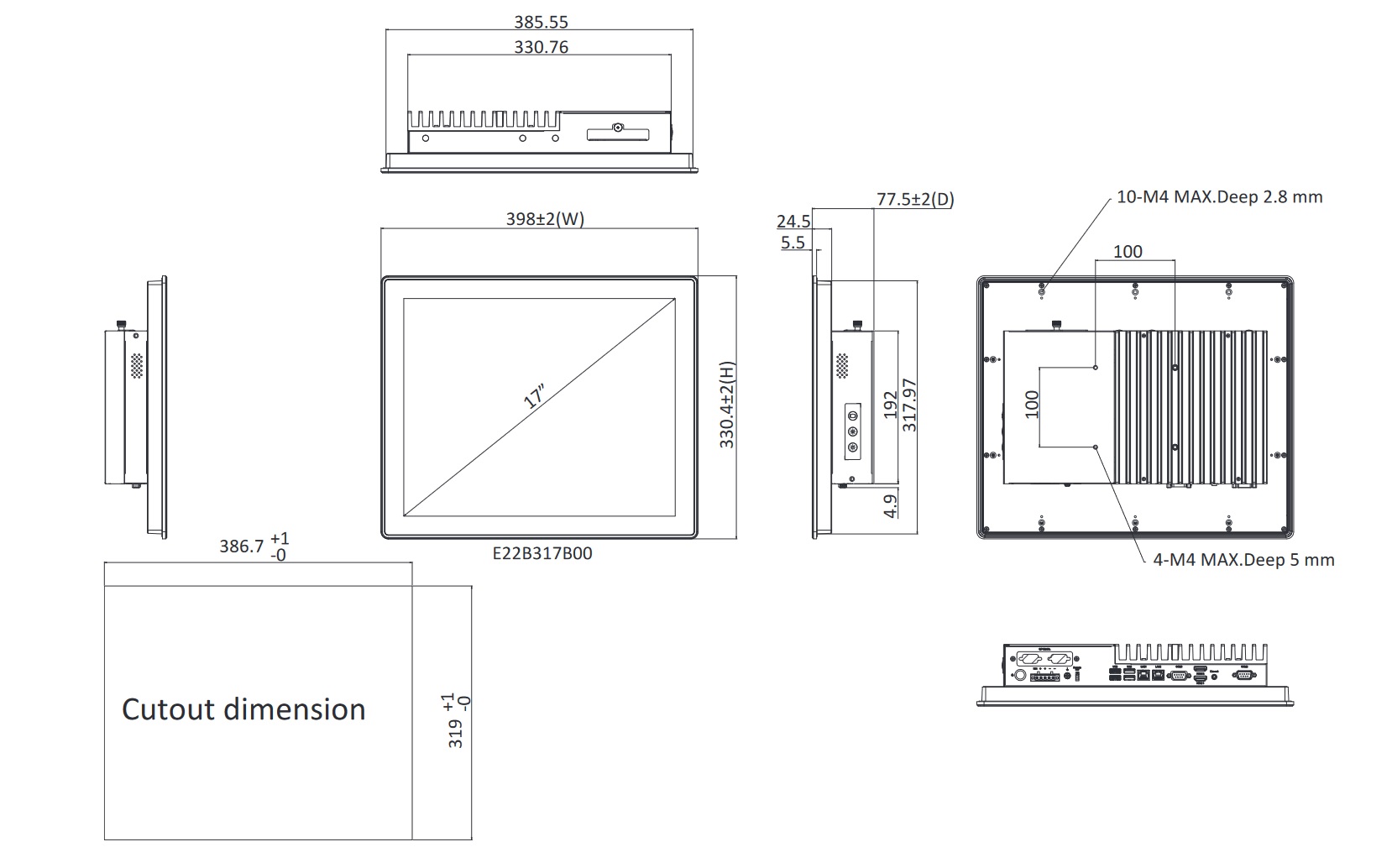

| Product Dimensions |
398 mm (15.67″) (W) x 77.5mm (3.05″) (D) x 330.45mm (13″) (H) |
| Packaging Dimensions |
625mm (24.61″) (W) x 260mm (10.24″) (D) x 600mm (23.62″) (H) |
