Description
General

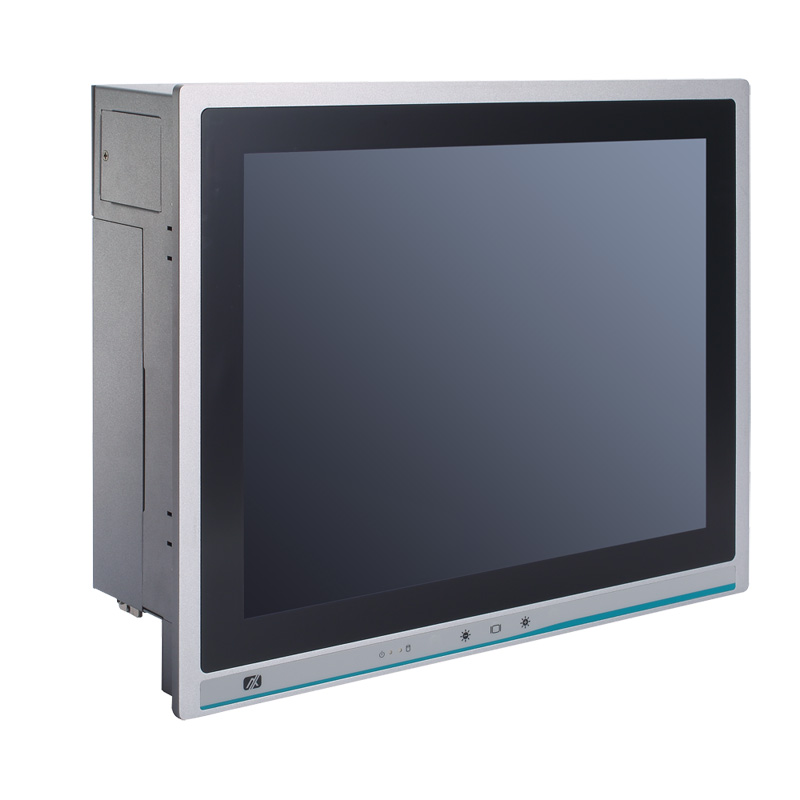

| Model | P115-560 |
|---|---|
| Front Bezel | Aluminum Construction with IP65 / NEMA 4 Rugged Protection |
| Touchscreen | 5-wire Resistive Touchscreen |
LCD Characteristics
| LCD Size | 15″ XGA TFT LCD |
|---|---|
| Resolution | 1024 x 768 |
| Brightness |
300 nits |
| Viewing Angle |
88°/88°/88°/88° |
Expansion Configuration
| PCIex16 | 1 x PCIex16 |
|---|
Processor
| CPU | 12th/13th/14th Gen Core i9,i7, i5, i3 TDP 35W / 65W |
|---|---|
| CPU Socket | LGA1700 |
| Chipset | Intel H160 |
System Memory
| Standard RAM | 8GB |
|---|---|
| Maximum RAM | 64GB |
| RAM Type | DDR4 |
| RAM Socket | 2x 260-pin SO-DIMM |
Hard Drive
| Hard Drive | 250GB |
|---|
Optical Drive
| Optical Drive | N/A (External drive option available) |
|---|
BIOS
| BIOS | AMI UEFI BIOS |
|---|
System Power
| Power Supply | 250 W |
|---|---|
| Power Input | 100~240VAC |
| Power Consumption | 120 W |
BIOS
| BIOS Type | AMI UEFI |
|---|
Graphics
| GPU Interface | 1 x VGA; 1 x HDMI; 1 x DisplayPort |
|---|
USB
| USB 2.0 | 4 x USB 2.0 |
|---|---|
| USB 3.2 | 2 x USB 3.2 Gen 1 |

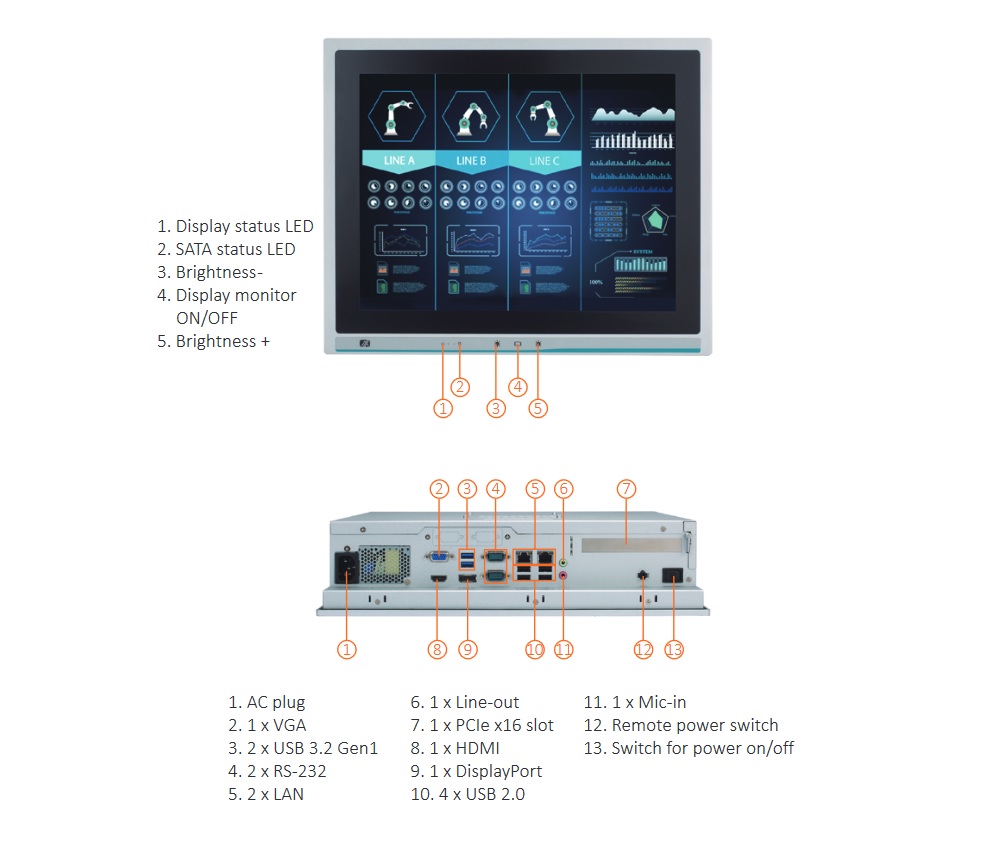

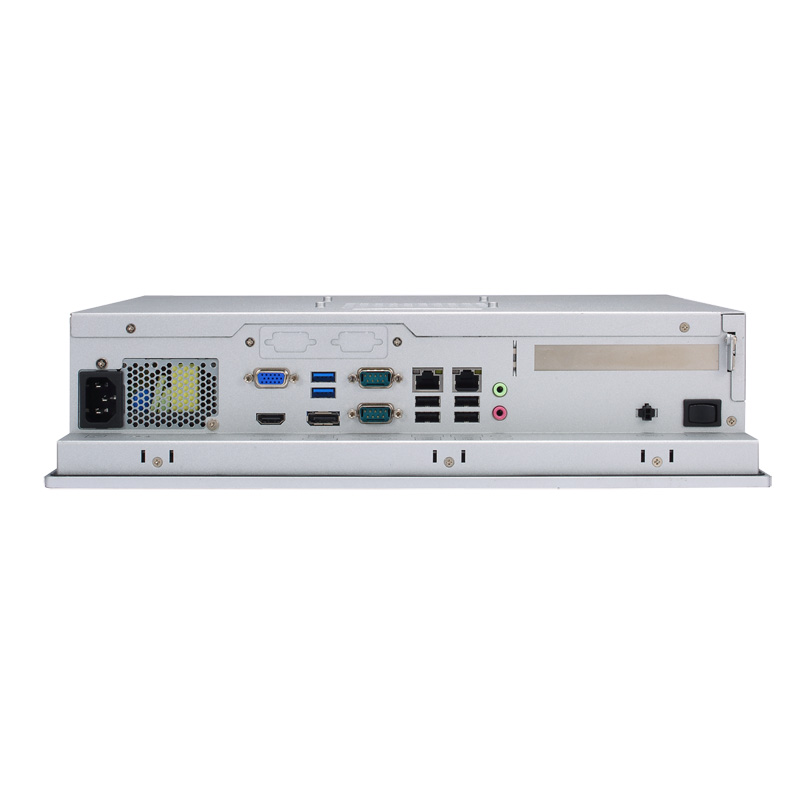

I/O
| Ethernet | 1 x 2500/1000/100/10Mbps Ethernet (Intel® I225-V) 1 x 1000/100/10Mbps Ethernet (Intel® I219-V) |
|---|---|
| WLAN | Optional |
| Serial | 2 x COM: 1 x RS-232/422/485, 1 x RS-232 (Additional 2x COM available via option) |
| Audio | 1 x Audio Line-out, 1 x Audio MIC-in |
| Remote Power |
1 x Remote power switch |
| Power |
1 x AC socket |
| Flexible I/O Expansion | 1 x Flexible I/O window (optional) |
System Characteristics
| Drive Capacity | 1 x Internal 2.5” SATA HDD(WT)/SSD |
|---|---|
| Mounting | Panel Mount (Included). Optional VESA, and Wallmount |
| Operating Temperature | 0°C to +50°C (+32°F to +122°F) |
| TPM | TPM 2.0 Onboard |
| Relative Humidity | 10% ~ 95% @ 40°C (Non-Condensing) |
| Vibration Resistance | 1G, 5 – 500Hz, operation (SSD, random) |
| Product Dimensions |
378.3 mm (14.89″) (W) x 88.8 mm (3.5″) (D) x 310.3 mm (12.22″) (H) |
| Packing Dimensions |
510 mm (20.08″) (W) x 186 mm (7.32″) (D) x 532 mm (20.94″) (H) |
| Weight | 6.3 kg (13.89 lb)/8.6 kg (18.96 lb) |
| Certifications | CE, EN 61000-6-2, EN 61000-6-4 UKCA FCC Class A |
