Description
General

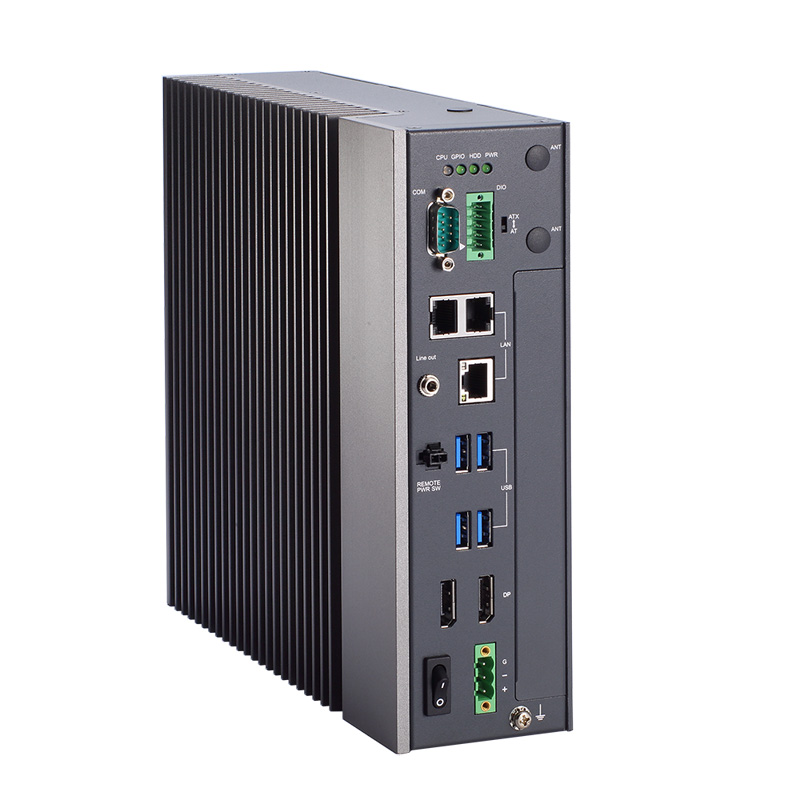

| Model | IEBX950 |
|---|---|
| Color | Silver Black |
Expansion Configuration
| PCIex4 | 1 x PCIex4 (Optional) |
|---|---|
| PCIe Mini Card Slot | 1 x Full-size PCI Express Mini Card slot with SIM slot (PCIe + USB signal) |
| M.2 | 1 x M.2 Key E 2230 socket |
| SIM | 1 x SIM Slot |
Flexible System I/O Window (Optional)
| COM Module 1 |
4 x RS-232/422/485 module (default RS-232) |
|---|---|
| COM Module 2 |
4 x RS-232/422/485 with isolated 2kVDC module |
| DIO Module |
2 x RS-232/422/485 with isolated 1.5kVDC & 8-in/8-out with isolated 1.5kVDC DIO module |
| EthernetUSB Module |
1 x 10/100/1000 Mbps (Intel® I211-AT) Ethernet, 2 x RS-232/422/485 and 2 x USB 3.0 (USB 2.0 signal) module |
| Blank Cover |
Default |
Processor
| CPU | 11th Gen Intel® Xeon® or Core™ i7/i5/i3 processor, up to 15W |
|---|---|
| Chipset | SoC (System on Chip) |
| Socket | Embedded |
System Memory
| Standard RAM | 8GB |
|---|---|
| Maximum RAM | 64GB |
| RAM Type | DDR4 U-DIMM |
| RAM Socket | 2x 240-pin SO-DIMM |
Hard Drive
| SSD | 250 GB |
|---|
System Power
| Power Input | 24 VDC (uMin=19V/uMax=30V) |
|---|---|
| Power Protection | OVP (over voltage protection); OCP (over current protection); Reverse Protection |
BIOS
| BIOS Type | AMI |
|---|
Graphics
| GPU Interface | 2 x DP++ 1.2 4K supports resolution up to4096*2160 @60HZ (Dual-Display Capable) |
|---|---|
| Graphics |
Intel UHD Graphics |
USB
| USB 3.1 | 4 x USB 3.1 (10G) Type A, |
|---|---|
| USB 2.0 | 1x USB 2.0 (Internal, 180D type A for license key) |

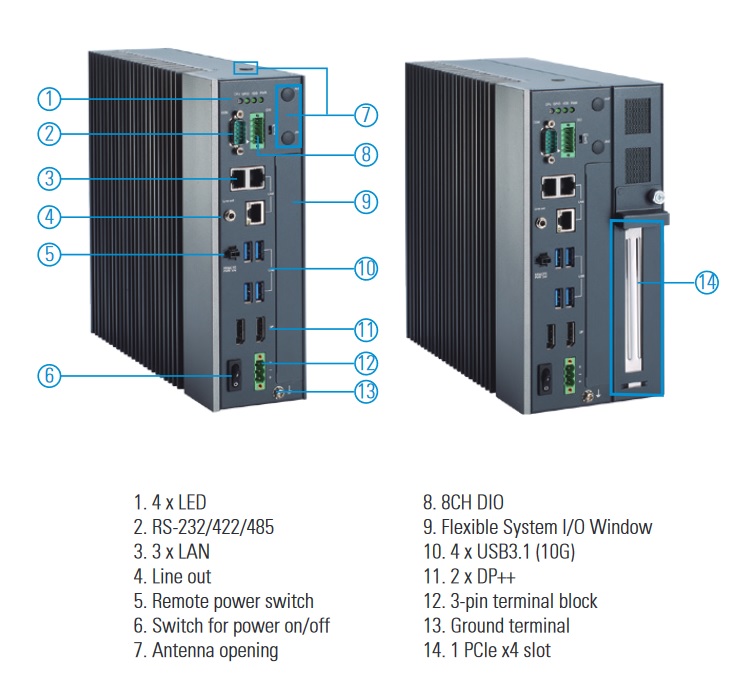

I/O
| Ethernet | 1 x Intel® 2.5 Gigabit LAN (Intel® I225-LM); 2 x Intel® Gigabit LAN (Intel® i211-AT) |
|---|---|
| Audio | 1 x Line-out |
| Serial | 1 x RS-232/422/485; More optionally provided with Flexible I/O Window Selection |
| DIO | Programmable 8CH DIO via 10-pin terminal block, TTL type |
| Remote | 1 x Remote power switch |
| Power Connection |
1 x 4-pin terminal block |
System Characteristics
| Construction | Aluminum Extrusion and Heavy-Duty Steel |
|---|---|
| Drive Capacity | 1 x 2.5″ HDD/SSD bay (7/9.5 mm height)
1 x M.2 Key M 2280 socket (PCIe Gen3 x4) for NVMe SSD |
| TPM | TPM 2.0 |

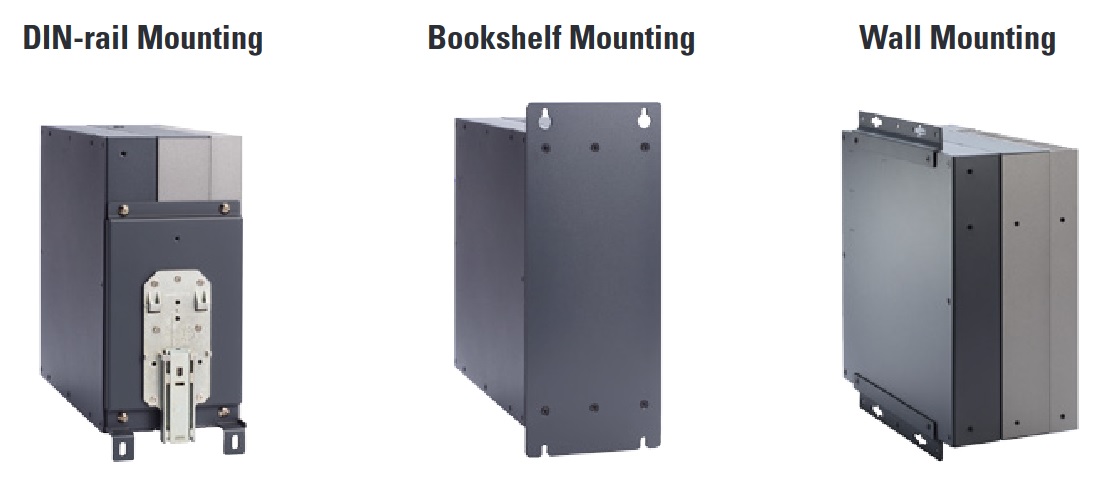

| Mounting Options | Wall Mount, DIN-Rail, Bookshelf |
| Front Panel Indicators | 1 x CPU status LED; 1 x Programmable (GPIO) LE; 1 x HDD/SSD access LED; 1 x Power LED |
| Front Controls | 1x ATX Power Switch |
| Cooling Fans | N/A |
| Watchdog Timer | N/A |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) with W.T. SSD |
| Humidity | 10% – 95%, non-condensing |
| Shock Vibration | N/A |
| Vibration Endurance | N/A |
| Weight (Net/Gross) |
4 kg/6 kg |

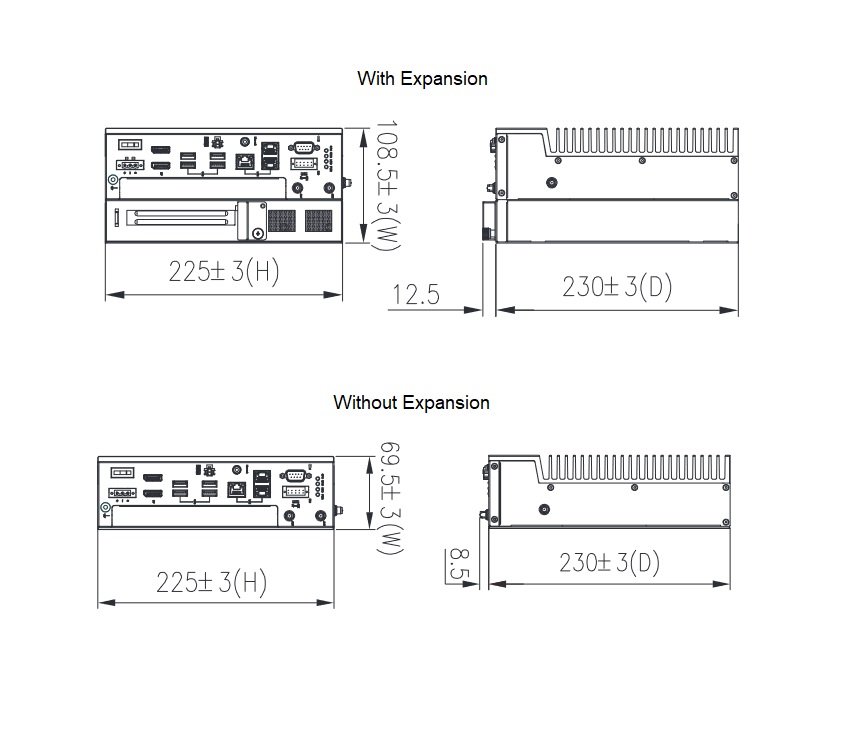

| Dimensions |
69.5 mm (2.73″) (W) x 225 mm (8.85″) (H) x 230 mm (9″) (D) |
Compliance
| Certification | CE Compliance |
|---|
