Description
General
| Model | MB522 |
|---|---|
| Chassis Type | Small Form Factor Embedded Chassis |
| Rack Units | N/A |
| Color | Black |

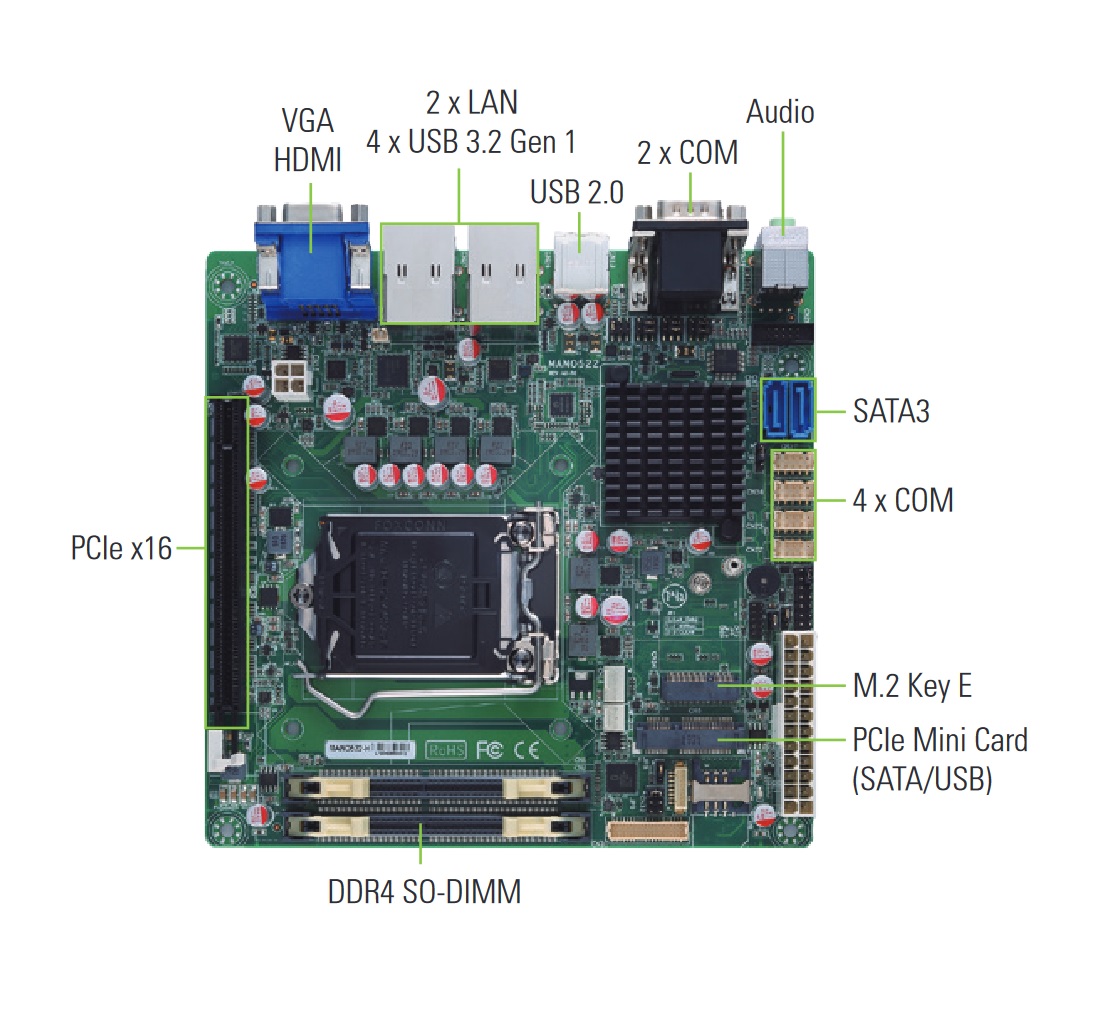

Expansion Configuration
| PCIex16 | 1x PCIex16 |
|---|---|
| M.2 Slot 2 |
1 x M.2 Key E 2230 |
| mSATA |
1 x mSATA |
Processor
| CPU | 8th/9th Gen Core i7, i5, i3 Processor 65W TDP |
|---|---|
| CPU Socket | LGA1151 |
| Chipset | Intel® H310 |
System Memory
| Standard RAM | 8 GB |
|---|---|
| Maximum RAM | 64 GB |
| RAM Type | DDR4 |
| RAM Socket | 2x 260-pin SO-DIMM |
| Memory Support |
UDIMM Non-ECC |
Hard Drive
| SSD | 250GB SSD |
|---|
Optical Drive
| Optical Drive | N/A |
|---|
System Power
| Power Supply | 250W |
|---|---|
| Power Supply Type | PS2 |
| Power Input | 100/240 VAC Auto-Switching |
BIOS Features
| BIOS Type | AMI BIOS |
|---|---|
| TPM | Firmware TPM 2.0 (fTPM 2.0) |
| Power Settings |
Wake on LAN, AT Mode Auto Power Function supported |
Graphics
| GPU | Intel UHD Graphics |
|---|---|
| GPU Interface | 1x HDMI 2.0, 1 x VGA |
Ethernet
| Ethernet Port 1 | 1 x 10/100/1000 Mbps Ethernet (Intel® i211-AT & Intel® i219-LM) |
|---|
USB
| USB 2.0 | 2 x USB 2.0 on Rear I/O |
|---|---|
| USB 3.1 | 4 x USB 3.1 on Rear I/O |
I/O
| SATA | 2 x SATA-600 |
|---|---|
| Serial | 1 x RS-232/422/485 Internal Header, 5x RS-232 |
| Audio | MIC-in/Line-in/Line-out with Realtek ALC662 |
| DIO | 8-channel in/out programmed |
RAID
| RAID | N/A |
|---|
Chassis Characteristics
| Construction | Steel |
|---|---|
| Drive Capacity | 1 x 2.5″ HDD (9.5 mm height) |
| I/O Access |
3 x COM knockouts, 1x DIO knockout, 1x PCI Express Slot |

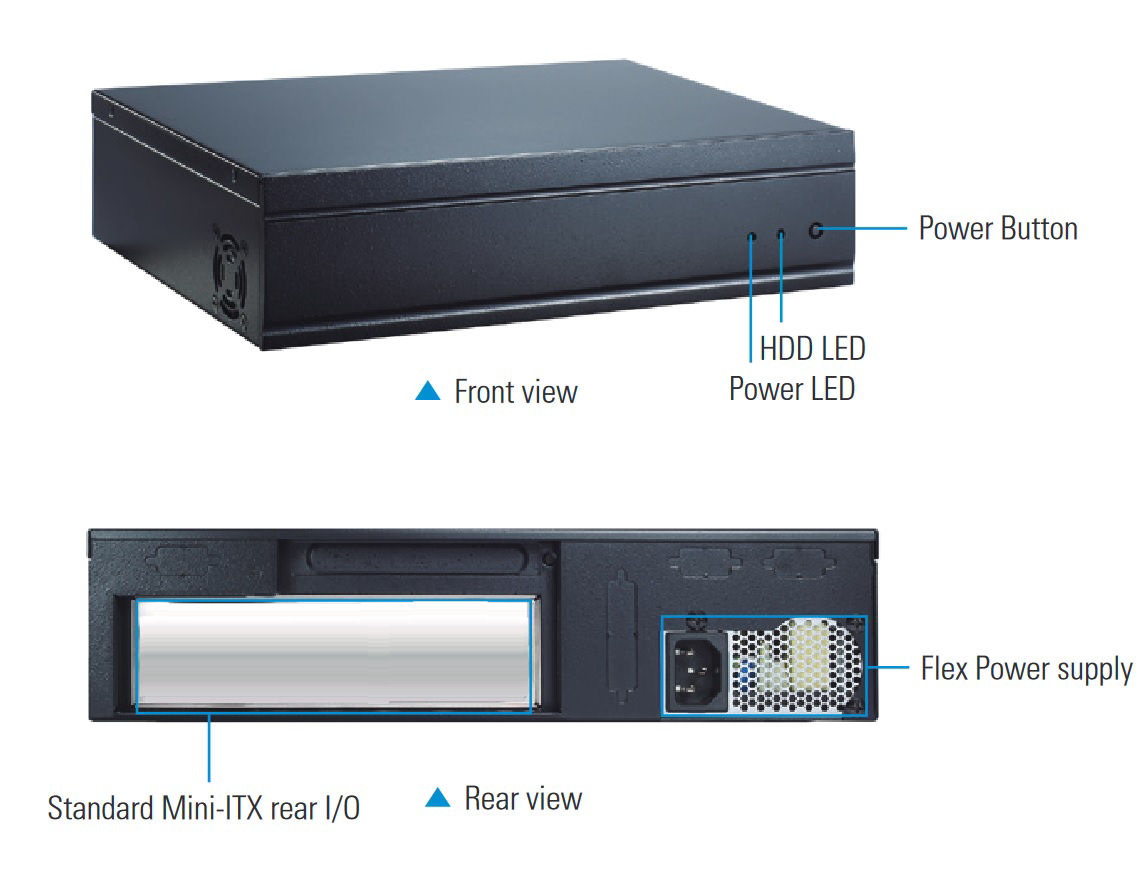

| Front Panel Indicators | 1 x Green LED for system power-on; 1 x Red LED HDD Active |
| Front Panel Controls | 1x Power On/Off |
| Cooling Fans | N/A |
| Watchdog Timer | 255 levels, 1 to 255 sec |
| Operating Temperature | 0°C to +60°C (+32°F to +140°F) |
| Relative Humidity |
10% – 95% relative humidity, non-condensing |

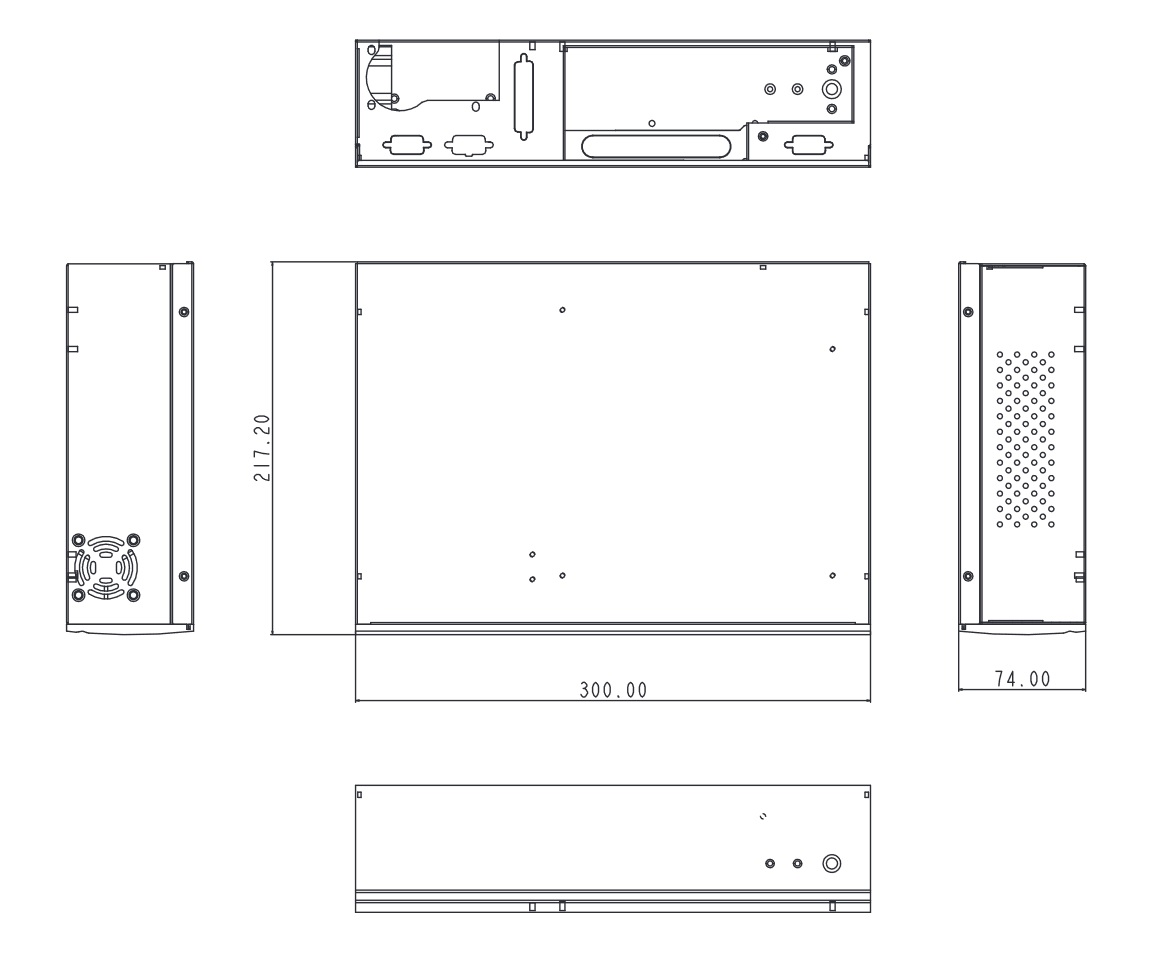

| Dimensions (W x D x H) | 217.2 x 300 x 74 mm (8.55″ x 11.81″ x 2.91″ |
| Certifications | EMI pre-scan meets EN55032 Class A, CE |
