Description
General
| Model | WRX80 |
|---|---|
| Chassis Type | Industrial Air Cooled Rackmount |
| Rack Units | 4U |
| Color | Black |
Expansion Configuration
| PCI | None |
|---|---|
| PCIex16 | 7x PCIex16 (4.0) |
| PCIex8 | None |
| PCIex4 | None |
| PCIex1 | None |
Processor
| CPU | AMD Ryzen Threadripper PRO Processors |
|---|---|
| CPU Socket | sWRX8 |
| CPU Cores | Up to 64 Core, 128 Thread Processor Support |
| Chipset | AMD WRX80 |
System Memory
| Standard RAM | 32 GB DDR4 |
|---|---|
| Maximum RAM |
2048 GB (Up to 512 with Non ECC, Up to 2048 with ECC) |
| RAM Type | DDR4 ECC or Non-ECC |
| RAM Socket | 8x 288-pin DIMM |
Hard Drive
| SSD | 250GB SSD |
|---|
Optical Drive
| Optical Drive | DVD-RW |
|---|
System Power
| Power Supply | 1000w |
|---|---|
| Power Supply Type | PS2 |
| Power Input | 100/240 VAC Auto-Switching |
BIOS
| BIOS Type | 256 Mb Flash ROM, UEFI AMI BIOS |
|---|
Graphics
| GPU | BMC Connection via VGA cable. |
|---|

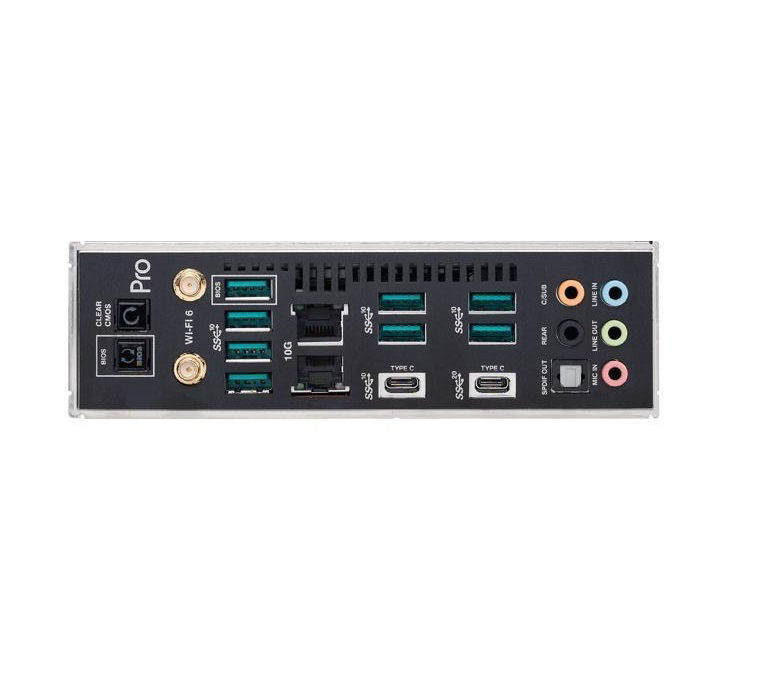

Networking
| Ethernet |
2 x Intel® X550-AT2 dual 10Gb Ethernet ports |
|---|---|
| Wifi | 1 x Wi-Fi 6 AX200 Module (Included) 802.11 a/b/g/n/ac/ax support 1024QAM/OFDMA/MU-MIMO 2.4/5GHz Dual-Band |
| Bluetooth | Bluetooth v5.1 |
USB
| USB 3.2 Type C |
2 x USB 3.2 GEN 2 Type-C rear |
|---|---|
| USB 3.2 Type A |
8 x USB 3.2 GEN 2 ports rear, 1 x USB 3.2 2-port via internal header to Chassis Front panel) |
| USB 2.0 |
4 x USB 2.0 Internal Header |
Miscellaneous
| Serial | 1 x COM Port 1 header |
|---|---|
| TPM | SPI TPM Header |
| Audio | Realatek ALC4080 7.1 Surround Sound High Definition Audio CODEC |
RAID
| RAID | Supports NVMe RAID via 2x M.2 Devices |
|---|---|
| RAID Note* |
*The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled. Each U.2 slots can support up to 4 SATA devices via a transfer cable. the cable is purchased separately. |
Storage
| SATA | 4 x SATA 6Gb/s via WRX80 Chipset, 4 x SATA via ASMedia ASM1061 Controller |
|---|---|
| M.2 | 2 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) |
| U.2 | 1 x U.2_1 slot supports U.2 NVMe device and up to 4 SATA devices |
| Flash Storage |
1 x MicroSD Card Socket |

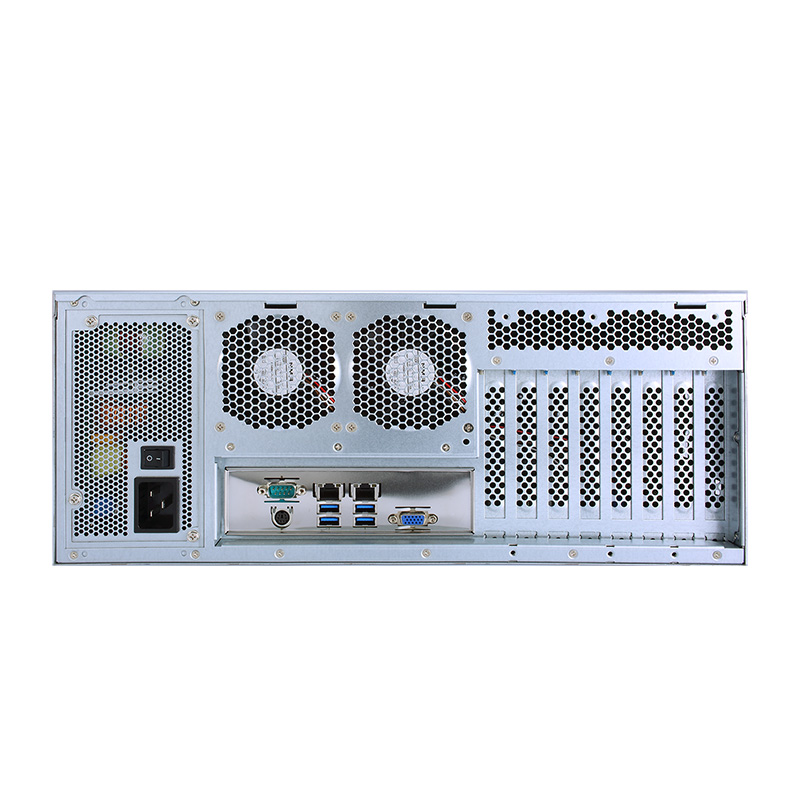

Chassis Characteristics
| Construction | Heavy-Duty Cold-Rolled Steel |
|---|---|
| Drive Capacity | 3x 5.25″ (External); 1x 3.5″ (External); 1x 3.5″ (Internal) |
| Front Panel Indicators | 1x Power On/Off; 1x HDD |
| Front Panel Controls | 1x Power On/Off; 1x System Reset |
| Cooling Fans | 1x 12cm |
| Watchdog Timer | 1 ~ 255 sec. |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Relative Humidity | 10% to 95% relative humidity, non-condensing |
| Dimensions (W x D x H) | 19″ (482.6mm) x 17.7″ (450mm) x 7″ (177mm) |
