Description
General
| Model | TX1712 |
|---|---|
| Chassis Type | Industrial ATX Tower with Wall-Mounting |
| Color | Black |
Expansion Configuration
| PCI | 2 x PCI 32bit |
|---|---|
| PCIex16 | 2 x PCIex16 4.0, (Slot 1 Running at x16/x8 signal) (Slot 2 Running at x0/x8 signal) |
| PCIex8 | None |
| PCIex4 | 2 x PCIex4 4.0, 1 x PCIex4 3.0 |
| PCIex1 | None |
| PCIe Mini Card Slot |
None |
| M.2 Slot |
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless, 1 x M.2 (Key B, 3042/3052) with PCIe x1 USB3.2 Gen1, USB 2.0 and SIM for 4G/5G; 1 x M.2 (Key M, 3042/2260/2280/22110/25110) with PCIe Gen4 x4 for SSD |
| SIM Socket |
1 x SIM socket connected to M.2 Key B |
Processor
| CPU | 12th/13th/14th Gen Core i9 i7, i5, i3 Processors (Up to 125w TDP) |
|---|---|
| CPU Socket | LGA1700 |
| Chipset | Intel W680 |
System Memory
| Standard RAM | 8 GB |
|---|---|
| Maximum RAM | 128 GB |
| RAM Type | DDR4 |
| RAM Socket | 4x 288-pin DIMM (Support up to 3200MHz) |
| Memory Support |
UDIMM ECC or Non-ECC Support |
Hard Drive
| SSD | 250GB SSD |
|---|
Optical Drive
| Optical Drive | Optional DVDRW |
|---|
System Power
| Power Supply | 500W |
|---|---|
| Power Supply Type | PS2 |
| Power Input | 100/240 VAC Auto-Switching |
BIOS Features
| BIOS Type | 256MB SPI Flash with AMI BIOS |
|---|---|
| TPM | TPM 2.0 Onboard IC |
| Power Config |
Power-on mode for AC power recovery, ACPI Power Management |
| Watchdog Timer |
256 Segments, 0, 1, 2, …255sec, Output from Super I/O to drag RESETCON# |
Graphics
| GPU | Intel UHD Graphics |
|---|---|
| GPU Interface | 1 x VGA port, 1 x DP 1.4a ++ port, 1 x HDMI 2.0b port (Triple Display Capable) |
| Max Resolutions | HDMI, DP ( 4096×2160@60Hz); VGA (1920 x 1200@60Hz) |
Ethernet
| Ethernet Port 1 | 1 x Intel® I225LMwith10/100/1000/2500Mbps,supportAMT/vPro |
|---|---|
| Ethernet Port 2 | 1 x I225LM with 10/100/1000/2500 Mbps |
| Ethernet Port 3 |
1 x I225LM with 10/100/1000/2500 Mbps |
USB
| USB 2.0 | 4 x USB 2.0 Internal headers (2 are used for chassis front I/O) |
|---|---|
| USB 3.2 (Gen2) |
5 x USB 3.2 Gen 2 (Rear I/O) |
| USB 3.2 (Gen1) |
2 x Dual USB 3.2 Gen 1 (Internal Box Header) |
| USB 3.2 (Gen2x2) |
1 x 3.2 Gen 2×2 Port Type-C (Rear I/O) |

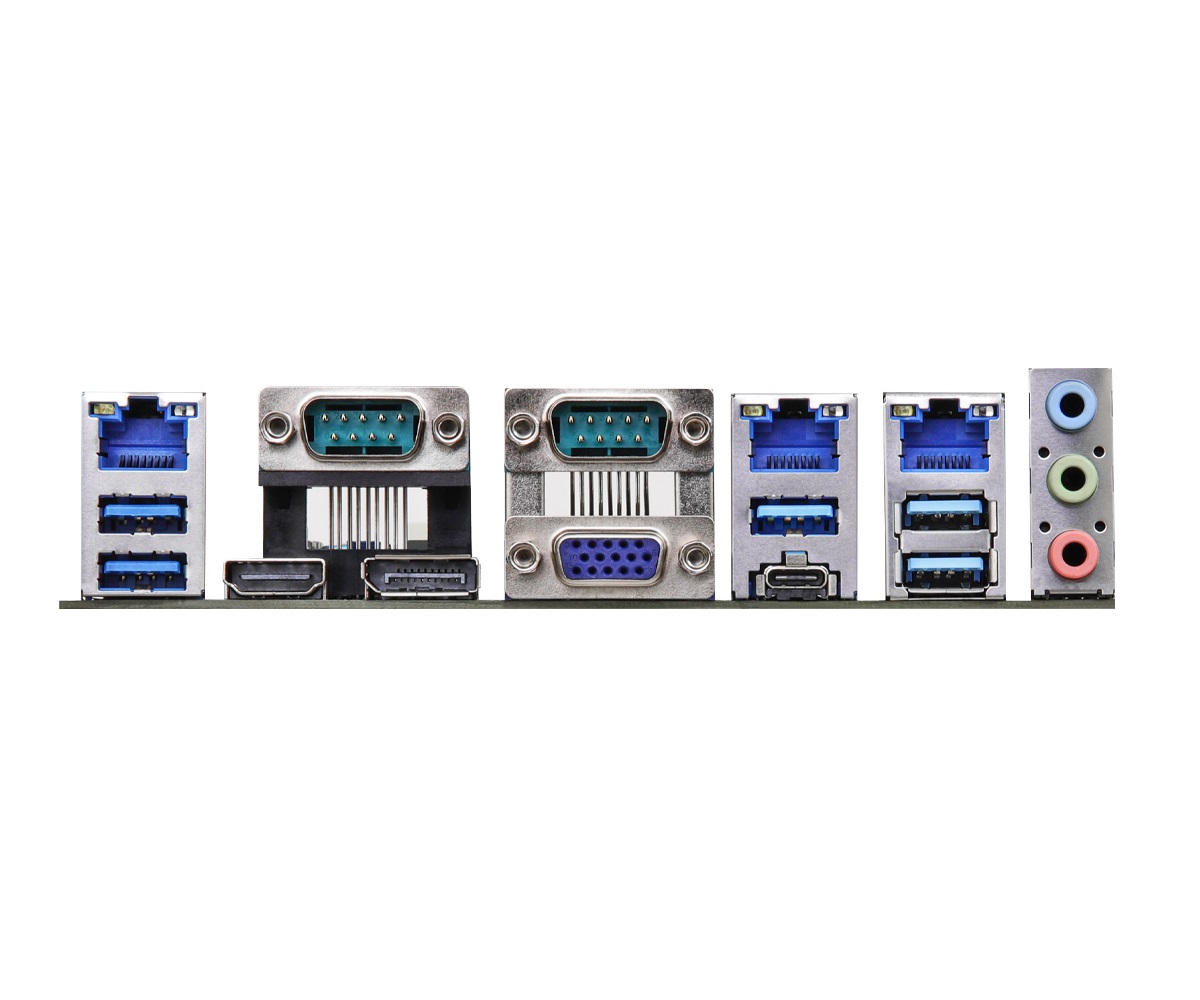

I/O
| SATA | 8 x SATA-600 |
|---|---|
| Serial | 6 x RS-232 (2x via rear I/O, 4x via Internal box header) |
| Audio | 1 x Realtek ALC897, High Definition Audio. Line-in,Line-out,Mic-in |
| Thunderbolt |
1 x Thunderbolt header (Only PCIe4 support) Requires additional PCIe Card for Thunderbolt support |
| GPIO | 1 x 8 x GPI, 8 x GPO (shared with LPT header |
| PS/2 | 1 x PS/2 keyboard and Mouse (via internal box headers) |
RAID
| RAID | Intel® VMD RAID 0/1/5/10 **supported by identical interface (PCIeorSATA) PCIe interface: M.2 Key B + M.2 Key M SATAinterface:SATA port |
|---|
Chassis Characteristics
| Construction | Heavy Duty Steel |
|---|---|
| Drive Capacity | 1 x 5.25” drive bay, 2 x 3.5” HDD drive bays |
| Front Panel Controls | 1x Power On/Off; 1x System Reset |
| Expansion profile | Full Height, Full length Card Support With Hold Down Bracket |
| Mounting | Wall Mounting Brackets Included |
| Cooling Fans | 1 x 12cm DC fan with a removable filter |
| Operating Temperature | 0°C to +40°C (+32°F to +104°F) |
| Dimensions (W x D x H) | 196 ± 1.0mm (7.72″) (W) x 407.4 ± 1.0mm (16.04″) (D) x 330 ± 1.0mm (13″) (H) |
