Description
General
| Model | EBX700-891 |
|---|---|
| Color | Silver |
Expansion Configuration
| Mini PCIe | 2 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) |
|---|---|
| PCIe or PCI | 1 x PCIe x4 slot or 1 x PCI slot |
| SIM Card | 1 x SIM slot (internal) |
Processor
| CPU | 6th/7th gen Intel® Core™ i7/i5/i3 ® processors (35W/65W) |
|---|---|
| CPU Socket | LGA1151 |
| Chipset | H110 |
System Memory
| Standard RAM | 8GB |
|---|---|
| Maximum RAM | 32GB |
| RAM Type | DDR4 |
| RAM Socket | 2 x 260-pin non-ECC SO-DIMM |
Operating System
| Supported Operating Systems | Windows 10, Windows 7 |
|---|
Hard Drive
| Wide Temp SSD | 128 GB |
|---|
System Power
| Power Connection |
Phoenix type VDC power input connect |
|---|---|
| Power Input | 9-36 VDC |
BIOS
| BIOS Type | AMI UEFI |
|---|
Graphics
| GPU Interface | 2 x HDMI (1 x HDMI 2.0 & 1 x HDMI 1.4b); 1 x DisplayPort; Up to 4k resolution. |
|---|
USB
| USB 3.0 | 4x USB 3.0 |
|---|---|
| USB 2.0 | 2x USB 2.0 |
I/O
| Ethernet | 4 x 10/100/1000 Mbps Ethernet (Intel® i210-IT, i219-LM) |
|---|---|
| Wifi | Optional 802.11AC+BT PCIe Card Add-on |
| Serial | 2 x RS-232/422/485 |
| Audio | 1 x Line-out, 1 x MIC-in |
| Flexible IO window | 1 x Flexible I/O window (default: 2 x DB9 half cut bracket) |
System Chassis Characteristics
| Construction | Aluminum Extrusion and Heavy-Duty Steel with IP40 Protection |
|---|---|
| Drive Capacity | 1 x 2.5” SATA HDD drive bay (max. up 15 mm height); 1x mSATA |
| Front Panel Indicators | 1x Green LED for System Power-On; 1x Orange LED for HDD Active, 4 x Programmable green LED |
| Front Panel Controls | 1x Reset Switch; 1x ATX Power Switch. |
| Cooling Fans | None, Fanless Cooling |
| TPM | N/A |
| Wifi Antennae Port | 4 x SMA-type antenna connector (internal), 4x Wifi Antennae Punch out (external) |
| Operating Temperature | -40°C to +50°C (-40°F to +122° F) (with W.T. SSD/DRAM) |
| Vibration Endurance |
3 Grms with SSD (5 to 500Hz, X, Y, Z directions) |
| Relative Humidity | 10% to 90%, non-condensing |
| Weight (Net/Gross) |
3.8 kg (8.37 lb)/4.6 kg (10.14 lb) |

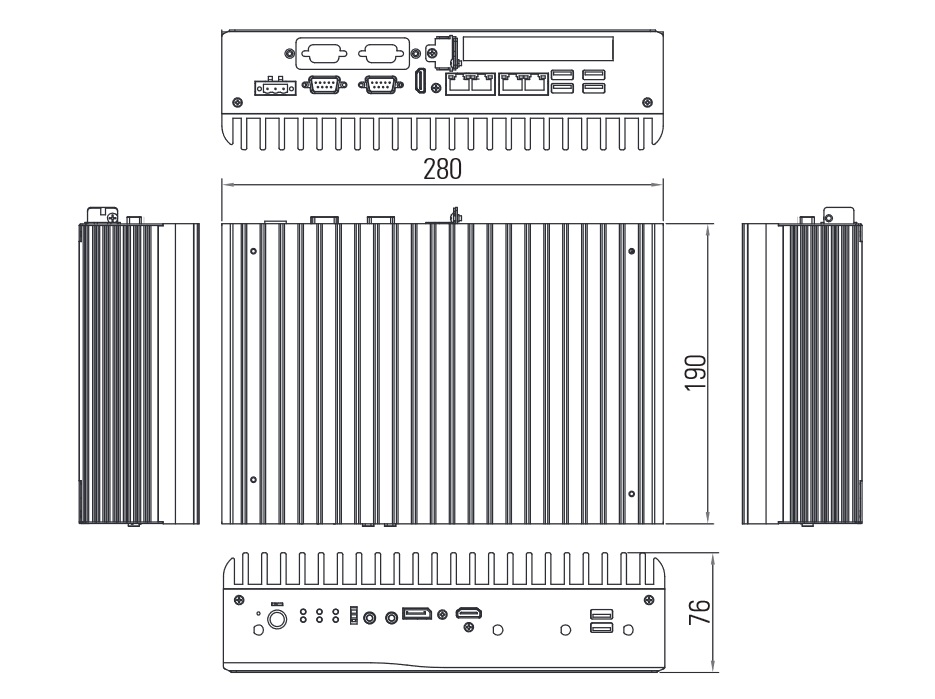

| Dimensions | 280 mm (11.02″) (W) x 190 mm (7.48″) (D) x 76 mm (2.99″) (H) |
| Certifications | CE, FCC Class A |
