Description
General
| Model | D12 |
|---|---|
| Mounting | Panel mount, wall mount, rack mount and VESA mounting |
| Front Bezel | Metal Construction with IP65 / NEMA 4/12 Rugged Protection |
| Touchscreen | Resistive Touchscreen |
| Interface | USB |
LCD Characteristics
| LCD Size | 12.1″ |
|---|---|
| Active Area (W x H) | 245.76 mm x 184.32 mm |
| Resolution | 1024 x 768 |
| Brightness (cd / m²) | 500 |
| Contrast | 700 |
| Backlight | LED |
| Backlight Hours | 30,000 MTBF |
| Viewing Angle (H / V) | 160° / 140° |
| Response Time | 16 ms |
| Pixel Pitch (H / V) | 0.24 mm x 0.24 mm |
System Power
| Adapter | Full Range Screw-type (locked) AC-in or 24VDC-in |
|---|
Characteristics

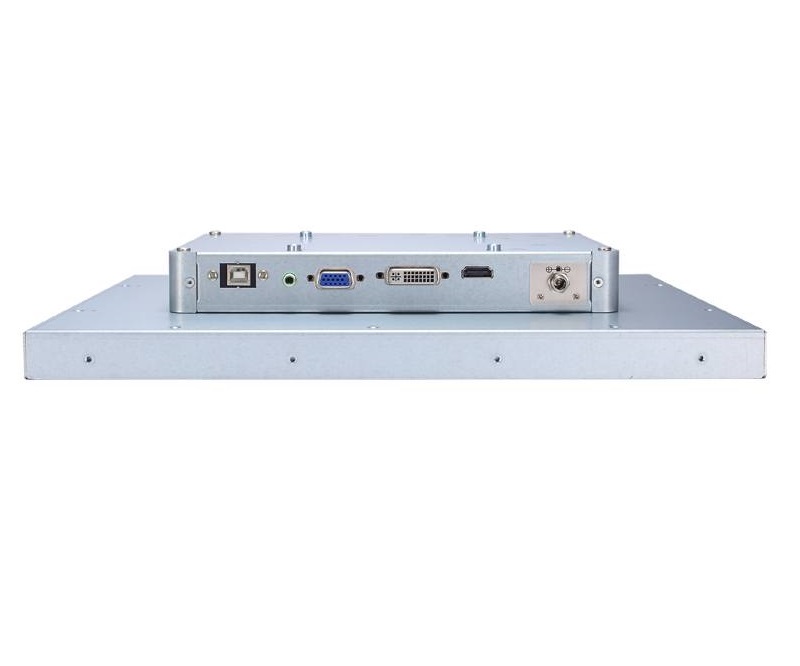

| Connectors | 1x HDMI; 1x VGA; 1x DVI-D; 1x RS-232 or 1x USB (Touchscreen Only) |
|---|---|
| Operating Temperature | 0°C ~ 55°C (32°F ~ 131°F) |
| Relative Humidity | 20% ~ 90% (Non-Condensing) |
| Dimensions (W x D x H) | 12.28″ (311.81mm) x 2.16″ (54.95mm) x 9.85″ (250.31mm) |
