Description
General
| Model | T711 |
|---|---|
| Chassis Type | Industrial ATX Tower with Wall-Mounting |
| Color | Black |
Expansion Configuration
| ISA | None |
|---|---|
| PCI | 2x PCI *5V PCI 32bit* |
| PCIex16 | 2x PCIex16 3.0 *2 PCI-E x16 slots are running at x16/NA or x8/x8* |
| PCIex8 | None |
| PCIex4 | None |
| PCIex1 | 3x PCIex1 3.0 |
| PCI-X | None |
Processor
| CPU | 6th/7th Gen Core i7, i5, i3, Xeon E3-1200 v5/v6 |
|---|---|
| CPU Socket | LGA1151 |
| Chipset | Intel C236 |
System Memory
| Standard RAM | 8 GB |
|---|---|
| Maximum RAM | 64 GB |
| RAM Type | DDR4 |
| RAM Socket | 4x 288-pin DIMM |
| Memory Support |
UDIMM Non-ECC or ECC (With Xeon Processor) |
Hard Drive
| SSD | 250GB SSD |
|---|
Optical Drive
| Optical Drive | Optional DVDRW |
|---|
System Power
| Power Supply | 500W |
|---|---|
| Power Supply Type | PS2 |
| Power Input | 100/240 VAC Auto-Switching |
BIOS Features
| BIOS Type | AMI UEFI 2.3.1 |
|---|---|
| TPM | TPM 2.0 (Module sold separately) |
| System Wakeup | RTC (Real Time Clock) Wakeup |
| System Management BIOS | SMBIOS 3.0 |
| BIOS Protection |
Hardware BIOS virus protection |
| Power Settings |
Power-on mode for AC power recovery |
Graphics
| GPU | Intel HD Graphics |
|---|---|

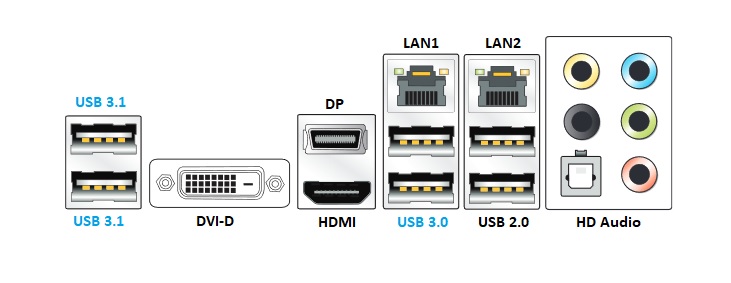

| GPU Interface | 1x DP; 1x DVI-D; 1x HDMI |
Ethernet
| Ethernet Port 1 | 10/100/1000 Mbps with Intel PHY I219LM |
|---|---|
| Ethernet Port 2 | 10/100/1000 Mbps with Intel I211AT |
USB
| USB 2.0 | 8x USB 2.0: 2x Rear I/O; 6x Internal Headers |
|---|---|
| USB 3.0 | 6x USB 3.0: 2x Rear I/O; 2x Internal Headers, 2x Front I/O |
| USB 3.1 | 2x USB 3.1 Rear I/O |
I/O
| SATA | 8x SATA-600 via C236 |
|---|---|
| M.2 | 1 PCI-E 3.0 x4 M Key, 2242/2260/2280 Form Factor |
| PS/2 | None |
| Serial | 2x COM via internal header |
| Audio | ALC 888S HD Audio; MIC-in / Line-out / Line-In / Center-LFE Out / Surround Out / SPDIF Out |
RAID
| RAID | 0, 1, 5, 10 RAID Onboard |
|---|
Chassis Characteristics
| Construction | Heavy Duty Steel |
|---|---|
| Drive Capacity | 1 x 5.25” drive bay, 2 x 3.5” HDD drive bays |
| Front Panel Controls | 1x Power On/Off; 1x System Reset |
| Expansion profile | Full Height, Full length Card Support With Hold Down Bracket |
| Mounting | Wall Mounting Brackets Included |
| Cooling Fans | 1 x 12cm DC fan with a removable filter |
| Operating Temperature | 0°C to +40°C (+32°F to +104°F) |
| Dimensions (W x D x H) | 196 ± 1.0mm (7.72″) (W) x 407.4 ± 1.0mm (16.04″) (D) x 330 ± 1.0mm (13″) (H) |
