Description
General
| Model | S810-4P2I |
|---|---|
| Chassis Type | Industrial Shoebox |
| Rack Units | 4U |
| Color | Black |
Expansion Configuration

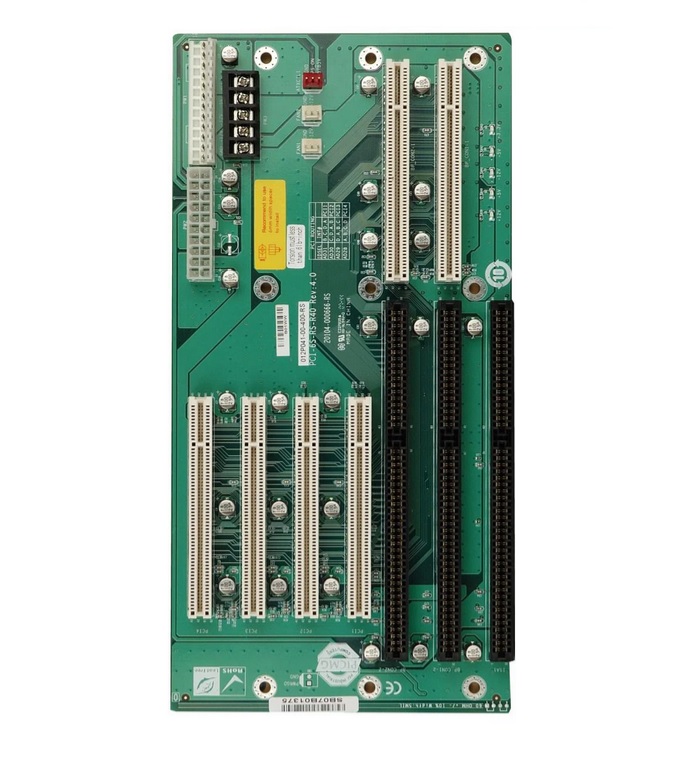

| ISA | 3x ISA (2x Usable) |
|---|---|
| PCI | 4x PCI |
| PCIex16 | None |
| PCIex8 | None |
| PCIex4 | None |
| PCIex1 | None |
| M.2 | 2 x PCIe mini Card Slot :1 x support mSATA |

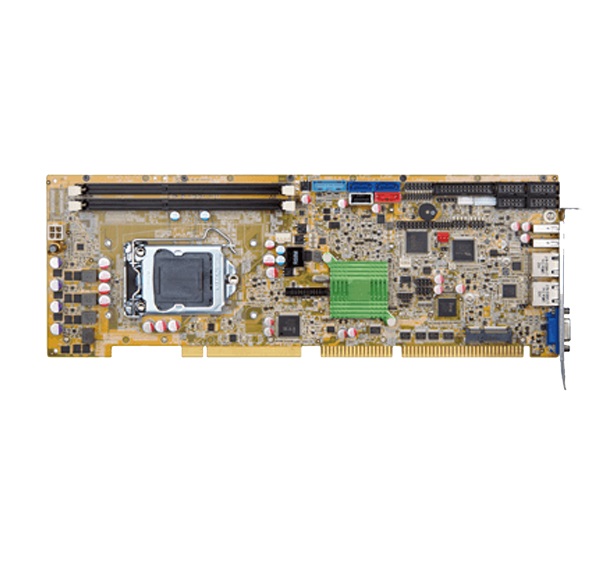

Processor
| CPU | 4th Gen Core i Series |
|---|---|
| CPU Socket | LGA1150 |
| Chipset | Intel H81 |
System Memory
| Standard RAM | 4 GB |
|---|---|
| Maximum RAM | 16 GB |
| RAM Type | DDR3 |
| RAM Socket | 2x 240-pin DIMM |
Hard Drive
| SSD | 250GB SSD |
|---|
Optical Drive
| Optical Drive | DVDRW |
|---|
System Power
| Power Supply | 300W (includes -5 volt) |
|---|---|
| Power Supply Type | PS2 |
| Power Input | 100/240 VAC Auto-Switching |
| Power Mode |
ATX/AT Support |
BIOS
| BIOS Type | UEFI AMI |
|---|---|
| TPM | TPM 1.2 Support (Optional) |
| ISA Support |
Note: BIOS does not support IRQ or DMA Reservations for Legacy ISA devices. Plug-and-Play only. |
Graphics
| GPU | Intel® HD Graphics Gen 7.5 supports DX11.1 and OpenCL 1.2, OpenGL 3.2, Full MPEG2, VC1, AVC Decode |
|---|---|
| GPU Interface | 1 x VGA, 1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840×2160@60 Hz); Supports Dual Independent display |
Ethernet
| Ethernet Port 1 | 10/100/1000Mbps Intel® I217-LM Ethernet controller |
|---|---|
| Ethernet Port 2 |
10/100/1000Mbps Intel® I211-AT Ethernet controller |

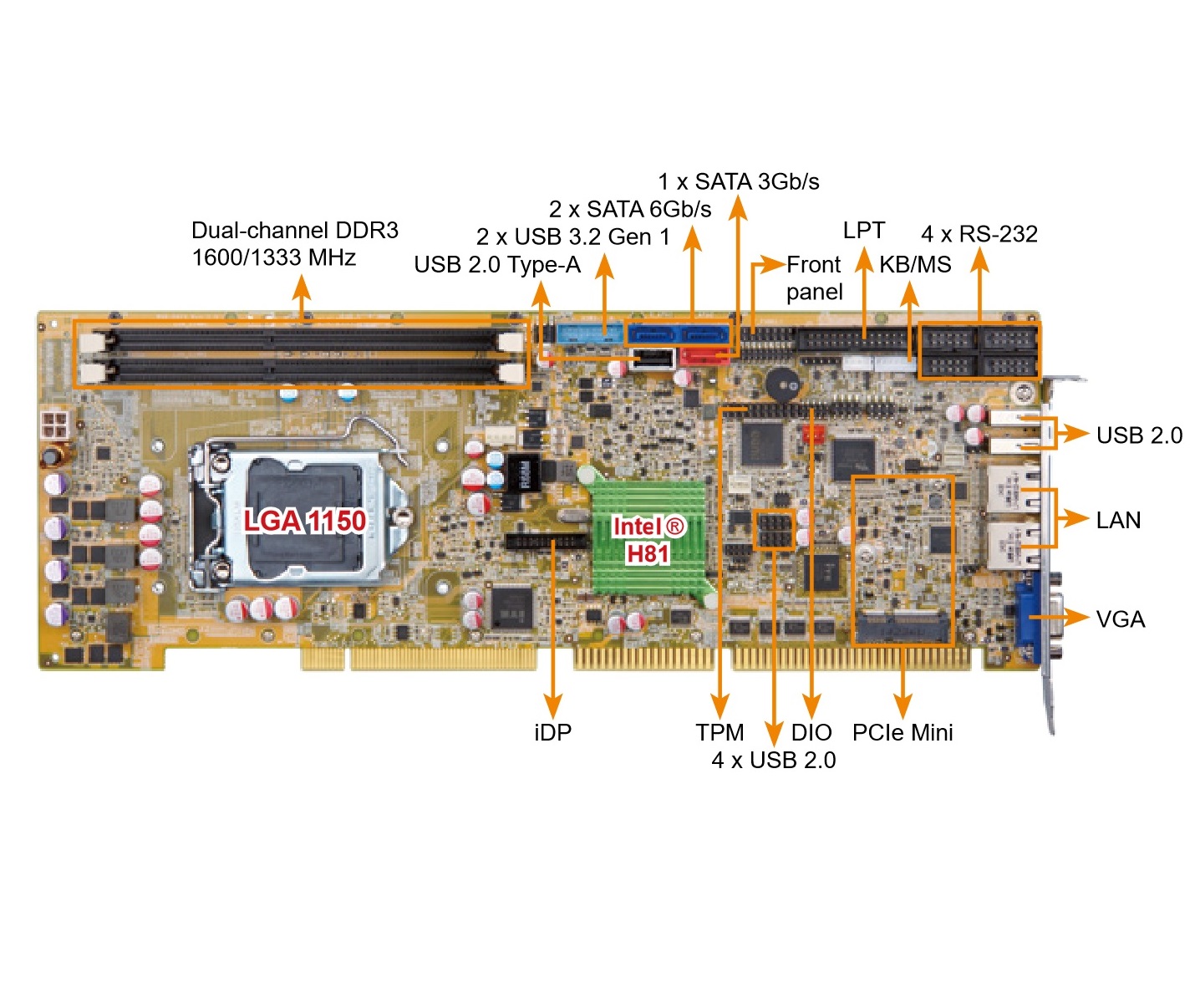

USB
| USB 2.0 | 2 x on Rear I/O, 2 x on Front Panel, 1 x Type A internal, 2 x Internal Header |
|---|---|
| USB 3.2 Gen 1 |
2 x on Internal Box Header (Note: USB 3.2 is not supported under Windows XP) |
I/O
| SATA | 2 x SATA 6Gb/s, 1x 1 x SATA 3Gb/s (AHCI supported, no RAID) |
|---|---|
| PS/2 | 1 x Keyboard internal header; 1x Mouse internal header |
| Serial | 4 x RS-232 via Internal box header, |
| LPT | 1x LPT |
| DIO | 8-bit digital I/O |
| Audio | Support 7.1 channel HD Audio via optional kit |

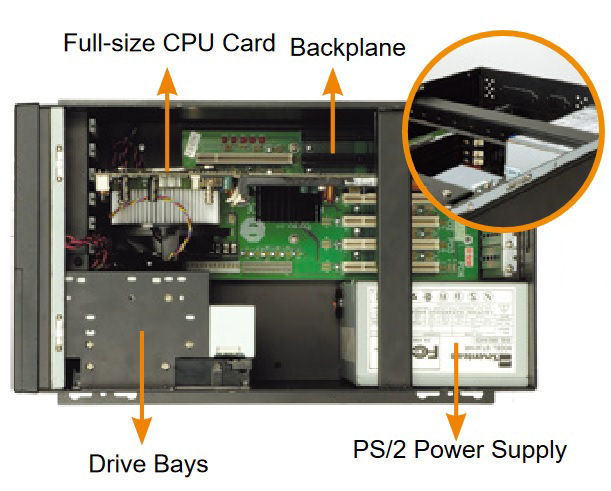

Chassis Characteristics
| Construction | Heavy-Duty Cold-Rolled Steel with Plastic Front panel. |
|---|---|

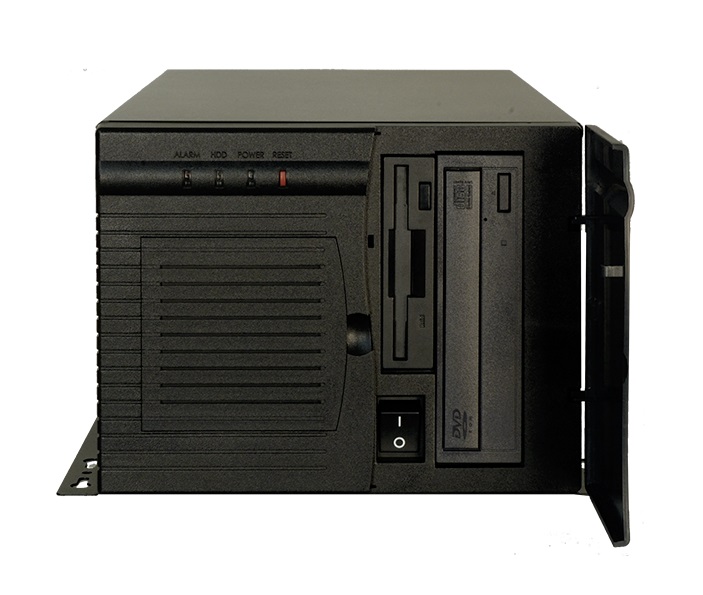

| Drive Capacity | 1 x 5.25″ (External); 1 x 3.5 (External); 1 x 3.5″ (Internal) |
| Front Panel Indicators | 1 x Power On/Off; 1x HDD |
| Front Panel Controls | 1 x Power On/Off; 1x System Reset |
| Cooling Fans | 1 x 80mm |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |

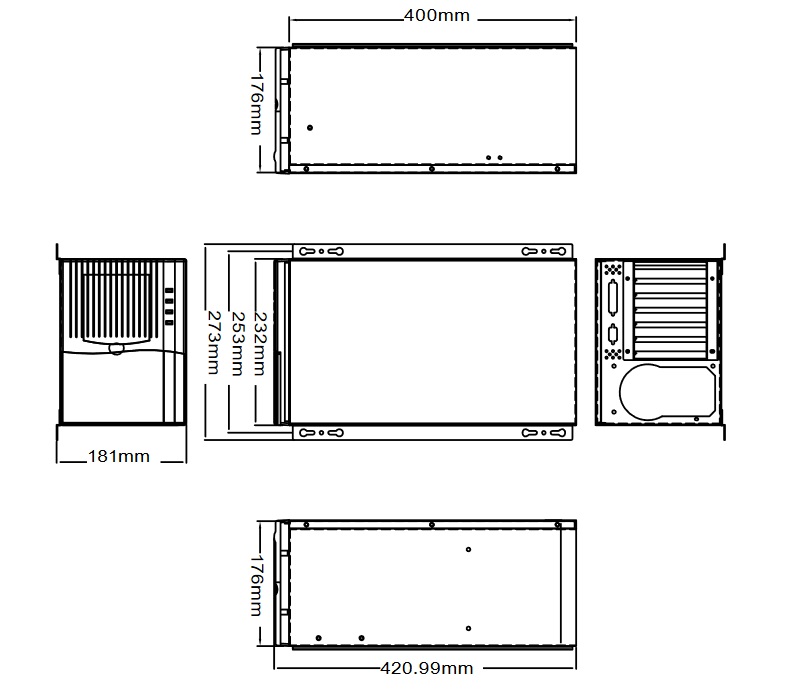

| Dimensions |
421 mm x 232 mm x 176 mm(DxWxH) |
