Description
General
| Model | R712-2 |
|---|---|
| Chassis Type | Industrial Rackmount |
| Rack Units | 2U |
| Color | Black |

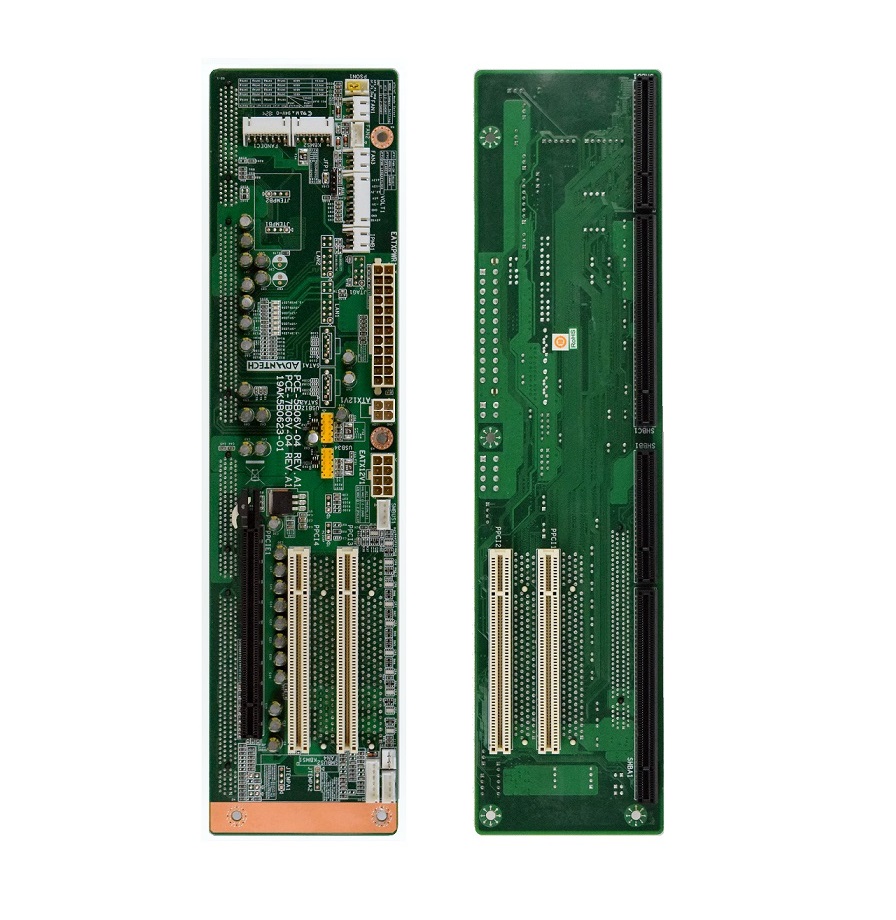

Expansion Configuration
| PCI | 4x PCI |
|---|---|
| PCIex16 | 1x PCIex16 |
| PCIex1 | None |
Alternate Expansion Configuration
| PCI | None |
|---|---|
| PCIex16 | 1x PCIex16 |
| PCIex1 | 4x PCIex1 |

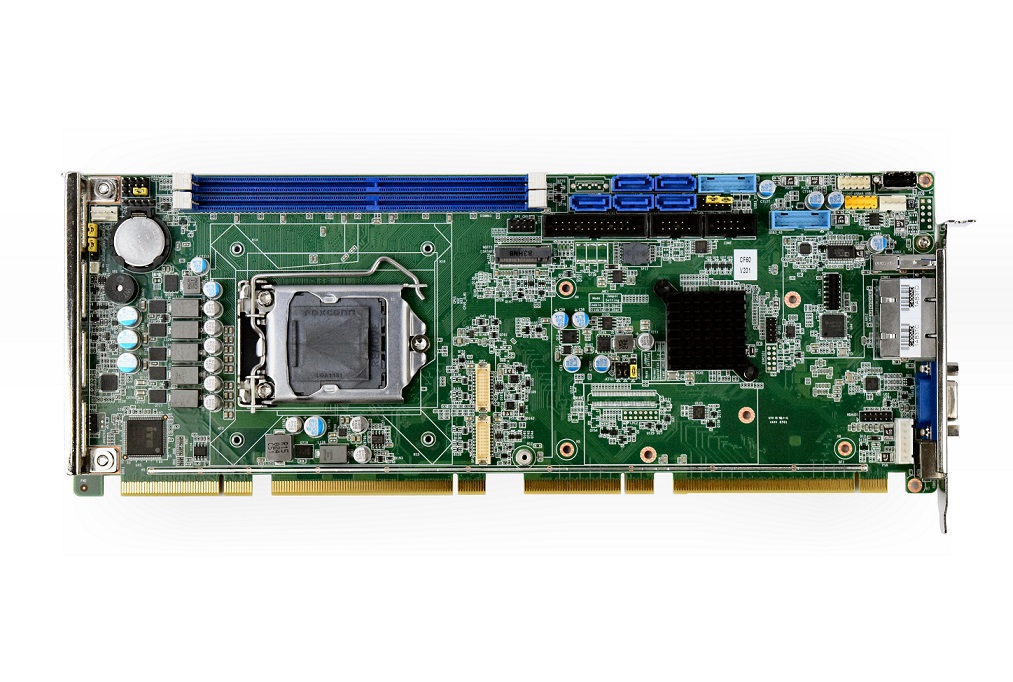

Processor
| CPU | 6th/7th Gen Core i7, i5, i3 |
|---|---|
| CPU Socket | LGA1151 |
| Chipset | Intel C236 |
System Memory
| Standard RAM | 4 GB |
|---|---|
| Maximum RAM | 32 GB |
| RAM Type | DDR4 |
| RAM Socket | 2x 288-pin DIMM |
Hard Drive
| SSD | 250GB SSD |
|---|
Optical Drive
| Optical Drive | Optional Slim DVDRW |
|---|
System Power
| Power Supply | 500W |
|---|---|
| Power Supply Type | PS2 |
| Power Input | 100/240 VAC Auto-Switching |
BIOS
| BIOS Type | AMI |
|---|---|
| AMT | TPM 2.0 (Optional) |
Graphics
| GPU | Intel HD Graphics |
|---|---|
| GPU Interface | 1x VGA Rear I/O; (Optional 2x DisplayPort/DVI-D Internal Headers) |
| Supported Resolution | VGA: Up to 1920 x 1200, DVI: Up to 1920 x 1200, DP: Up t0 1920 x 1080 |
Ethernet
| Ethernet Port 1 | 10/100/1000 Mbps with Intel I219LM |
|---|---|
| Ethernet Port 2 | 10/100/1000 Mbps with Intel I210AT |
USB
| USB 2.0 | 7x USB 2.0: 2x Front I/O; 1x Type A Connectors; 4x Internal Headers |
|---|---|
| USB 3.0 | 5x USB 3.0: 1x Rear I/O; 4x Internal Headers |
I/O
| SATA | 5x SATA-600 |
|---|---|
| MSATA | 1x M.2 (2280 Type M) supports SATA 3.0 or PCIe x4 |
| Parallel | 1x via Internal Header |
| PS/2 | 1x Keyboard/Mouse Combo via PS/2 Y-Cable |
| Serial | 2x RS-232 Internal Headers |
| DIO | 8-Bit |
| IrDA | 1 |
RAID
| RAID | 0, 1, 5, 10 RAID Onboard |
|---|
Chassis Characteristics
| Construction | Heavy-Duty Cold-Rolled Steel |
|---|---|
| Drive Capacity | 1x 5.25″ Slim DVD (External); 2x 3.5″ (External/Internal) |
| Expansion Capacity | 6-slot, up to 5 available expansion slots |

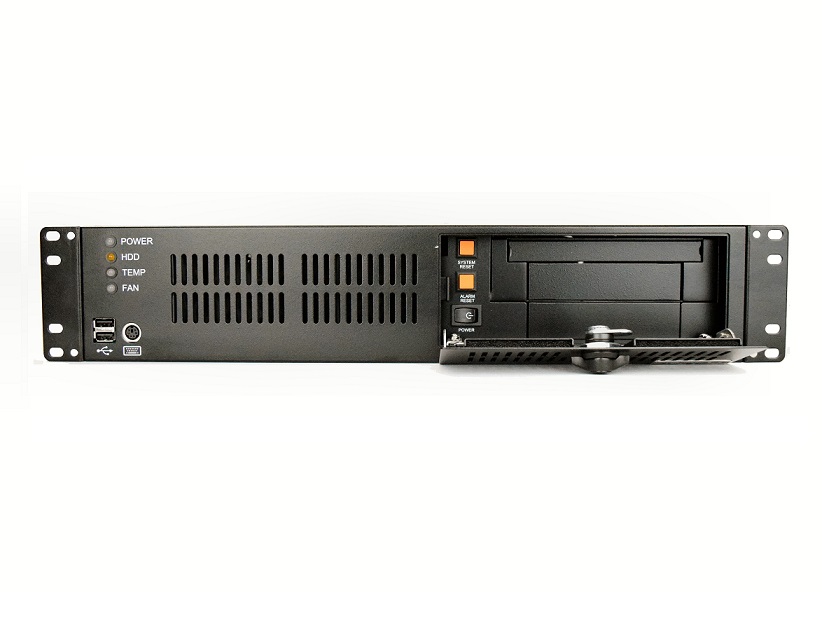

| Front Panel Indicators | 1x Power On/Off; 1x HDD; 1x Temperature; 1x Fan |
| Cooling Fans | 2x 8cm |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Non-Operating Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Relative Humidity | 10% ~ 85% @ 40° C, non-condensing |
| Shock Resistance | 10G (11ms duration, half sine wave) |
| Vibration Resistance | 0.5 Grms |
| Dimensions (W x D x H) | 19″ (482mm) x 17.8″ (451mm) x 3.5″ (88mm) |
