Description
General
| Model | R701-4 |
|---|---|
| Chassis Type | Industrial Rackmount |
| Rack Units | 4U |
| Color | Black |

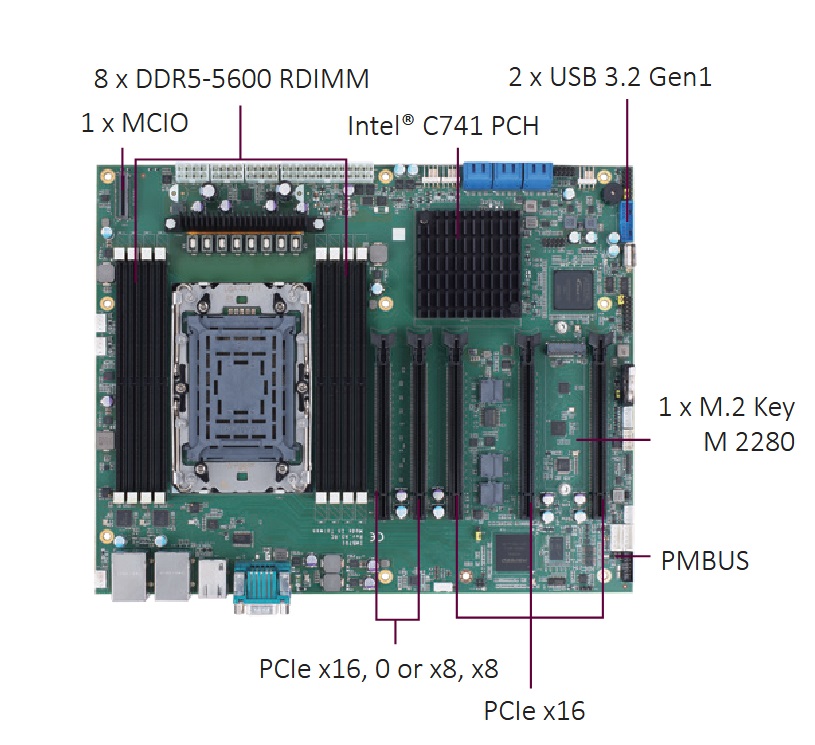

Expansion Configuration
| PCI | None |
|---|---|
| PCIex16 | Slot 1 & 2: PCIe x16 (1 x Gen5 x16 or 2 x Gen5 x8 via jumper setting)
Slots 3, 5, & 7: PCIe x16 (Gen5 x16 link) |
| PCIex8 | Note PCIex16 slot configuration. |
| PCIex4 | None |
| PCIex1 | None |
| M.2 Key M | 1x NVMe M.2 Key M 2280 (PCIe Gen5 x4) |

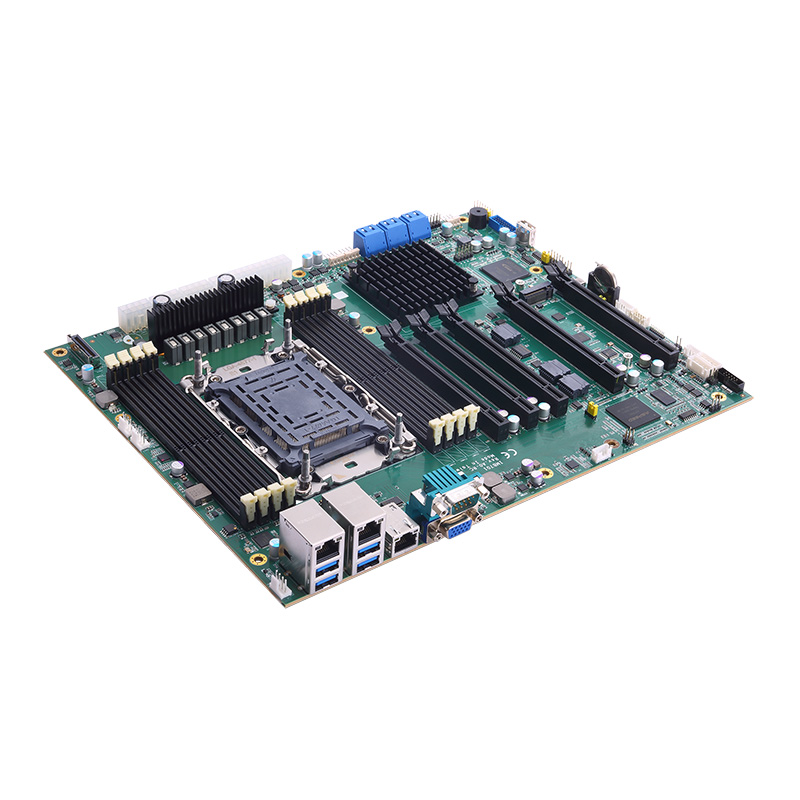

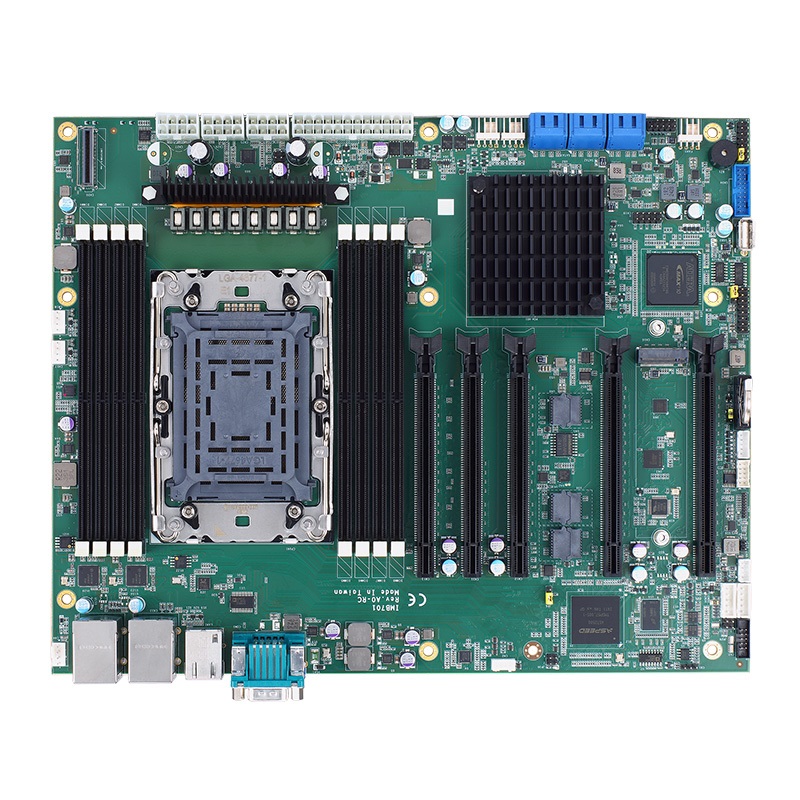

Processor
| CPU | 4th/5th Generation Intel® Xeon® Scalable Processors, TDP support 350W |
|---|---|
| CPU Socket | LGA4677 (Socket E) |
| Chipset | Intel® C741 |
System Memory
| Standard RAM | 16GB |
|---|---|
| Maximum RAM |
512GB |
| RAM Type | DDR5 R-DIMM ECC |
| RAM Socket | 8 Slot 288 Pin |
Hard Drive
| SSD | 250GB SSD |
|---|
Optical Drive
| Optical Drive | Optional DVD-RW |
|---|
System Power
| Power Supply | 700W |
|---|---|
| Power Supply Type | PS2 |
| Power Input | 100/240 VAC Auto-Switching |
BIOS
| BIOS Type | AMI UEFI |
|---|
Graphics
| GPU | AST2600 |
|---|---|
| GPU Interface | 1x VGA |

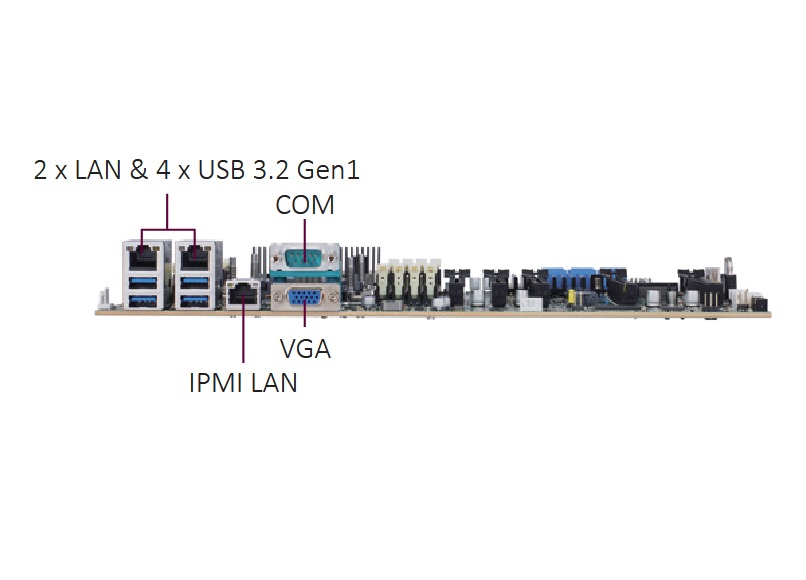

Ethernet
| Ethernet | 2 x 10/100/1000 Mbps Ethernet (Intel® I210-AT) |
|---|---|
| Ethernet (Management Port) | 1 x Dedicated IPMI 2.0 LAN port (Realtek RTL8211F) Redfish API |
USB
| USB 2.0 | 2 x Internal USB 2.0 (Routed to Front I/O, 1 x Internal USB 2.0 Type-A (for license dongle) |
|---|---|
| USB 3.2 | 4 x USB 3.2 Gen1 (Rear I/O), 2 x Internal USB 3.2 Gen1 |
I/O
| SATA | 6 x SATA3 (6 Gbps) ports |
|---|---|
| MCIO | 1 x MCIO (PCIe Gen5 x8) for 2 x NVMe SSD (Optional) |
| PS/2 | 1 x PS/2 keyboard and mouse combo port |
| Serial | 1 x Rear I/O COM (RS-232), 1 x Internal COM (RS-232) Box Header |
| TPM | TPM 2.0 |
| Audio | HD Codec audio as MIC-in/Line-in/Line-out/Speaker-out with optional audio kit |
| DIO | 8-channel TTL |
RAID
| RAID | RAID 0,1,5,10 |
|---|

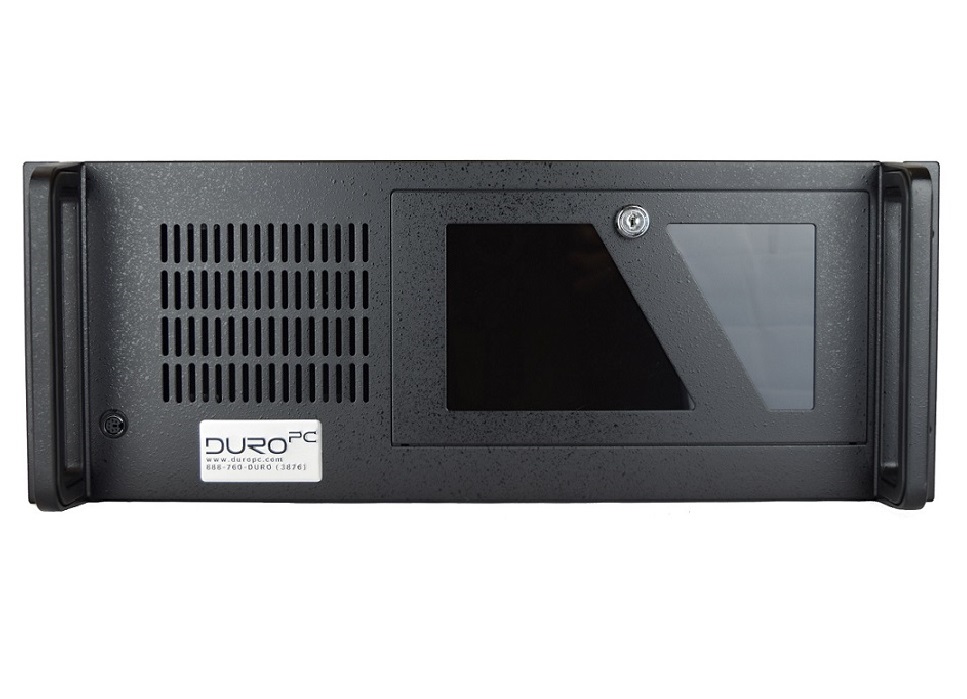

Chassis Characteristics
| Construction | Heavy-Duty Cold-Rolled Steel |
|---|---|
| Drive Capacity | 3x 5.25″ (External); 1x 3.5″ (External); 1x 3.5″ (Internal) |
| Front Panel Indicators | 1x Power On/Off; 1x HDD |
| Front Panel Controls | 1x Power On/Off; 1x System Reset |
| Cooling Fans | 1x 12cm |
| Watchdog Timer | 1 ~ 255 sec. |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Relative Humidity | 10% to 95% relative humidity, non-condensing |
| Dimensions (W x D x H) | 19″ (482.6mm) x 17.7″ (450mm) x 7″ (177mm) |
