Description
General
| Model | R540-1 |
|---|---|
| Chassis Type | Industrial Rackmount |
| Rack Units | 1U |
| Color | Black |
Expansion Configuration
| PCI | N/A |
|---|---|
| PCIex16 | 1 x PCIex16 4.0 |
| PCIex8 | N/A |
| PCIex4 | N/A |
| PCIex1 | None |
| PCIe Mini Card Slot |
1 x PCIe Mini Card slot (signal: PCIe x1) |
| M.2 Slot 1 |
M.2 Key M 2280 with PCIe x4 via CPU for NVMe SSD |
Processor
| CPU | 12th/13th Gen Core i9 i7, i5, i3 Processors (Up to 125w TDP) |
|---|---|
| CPU Socket | LGA17200 |
| Chipset | Intel R680E |
System Memory
| Standard RAM | 8 GB |
|---|---|
| Maximum RAM | 128 GB |
| RAM Type | DDR4 |
| RAM Socket | 4 x 288-pin DIMM (Support to 3200MHz) |
| Memory Support |
UDIMM ECC or Non-ECC Support |
Hard Drive
| SSD | 250GB SSD |
|---|
Optical Drive
| Optical Drive | N/A (Optional External USB DVD Drive Available) |
|---|
System Power
| Power Supply | 300W |
|---|---|
| Power Supply Type | PS2 |
| Power Input | 100/240 VAC Auto-Switching |
BIOS Features
| BIOS Type | AMI BIOS |
|---|---|
| TPM | 1 x TPM 2.0 Header (Optional TPM chip) |
| Power Settings |
Wake on LAN |
Graphics
| GPU | Intel UHD Graphics |
|---|---|
| GPU Interface | 1 x DisplayPort++(DP2.1) Up to 4096×2304 @60Hz, 1 x HDMI 4.1 Up to 4096×2160 @24Hz, 1 x DVI-D up to 1920×1200 @60Hz, 1 x VGA up to 1920×1200 @60Hz |
Ethernet
| Ethernet Port 1 | 1 x 10/100/1000/2500 Mbps with Intel® I225-LM; supports Wake-on-LAN, PXE Boot ROM, TSN, and Intel® AMT with Intel vPro® |
|---|---|
| Ethernet Port 2 | 1 x 10/100/1000 Mbps with Intel® I210-AT; supports Wake-on-LAN, PXE Boot ROM |
USB
| USB 2.0 | 1 x USB 2.0 (internal, 180D type A), 2 x USB 2.0 (internal, pin header), 2 x 2.0 Routed to Front Chassis I/O |
|---|---|
| USB 3.2 (Gen2x1) |
4 x USB 3.2 Gen 2×1 (10Gbps) (Rear I/O) |
| USB 3.2 (Gen1x1) |
2 x Dual USB 3.2 Gen 1×1 (5Gbps) (Internal, Box Header) |

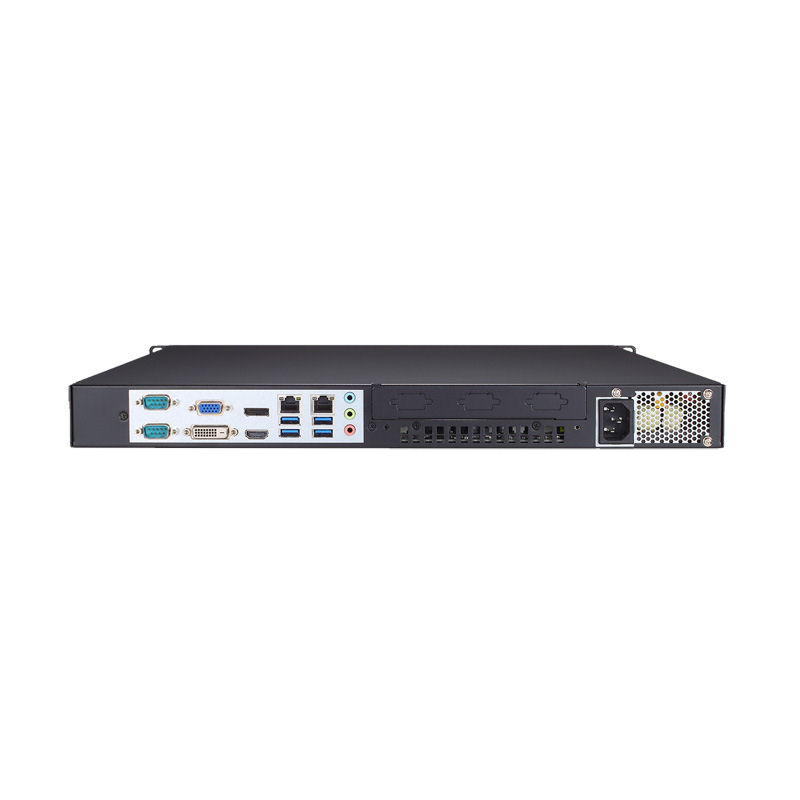

I/O
| SATA | 4 x SATA-600 |
|---|---|
| Serial | 2 x RS-232/422/485 (rear I/O), 4 x RS-232 (via Internal box headers) |
| Audio | HD Codec audio as MIC-in/Line-in/Line-out |
| Digital IO |
8-channel programmable |
| PS/2 | 1 x PS/2 keyboard and Mouse (via internal box headers) |
RAID
| RAID | SATA RAID 0/1/5/10 |
|---|

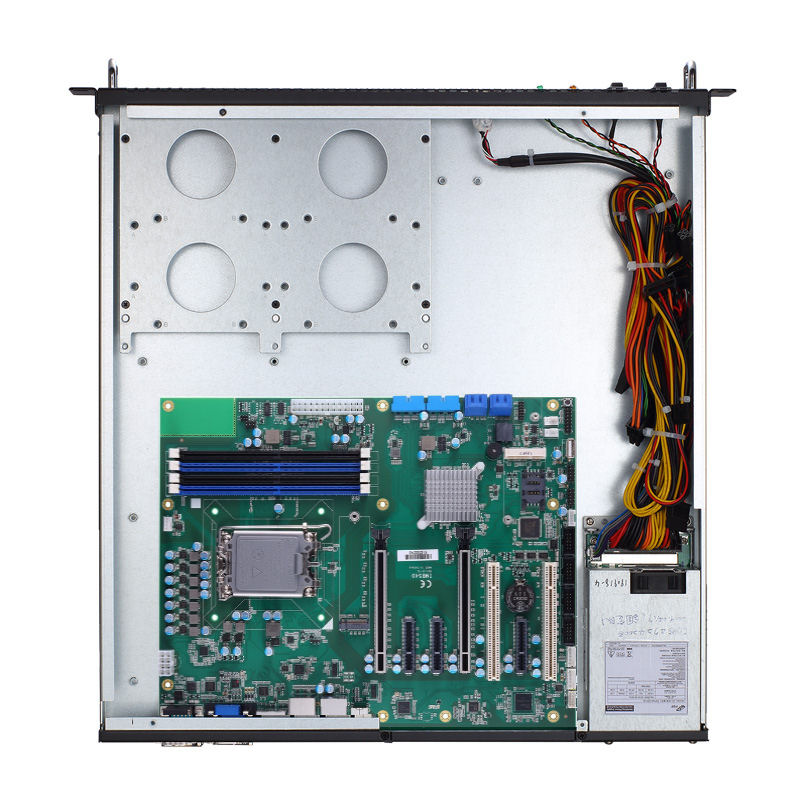

Chassis Characteristics

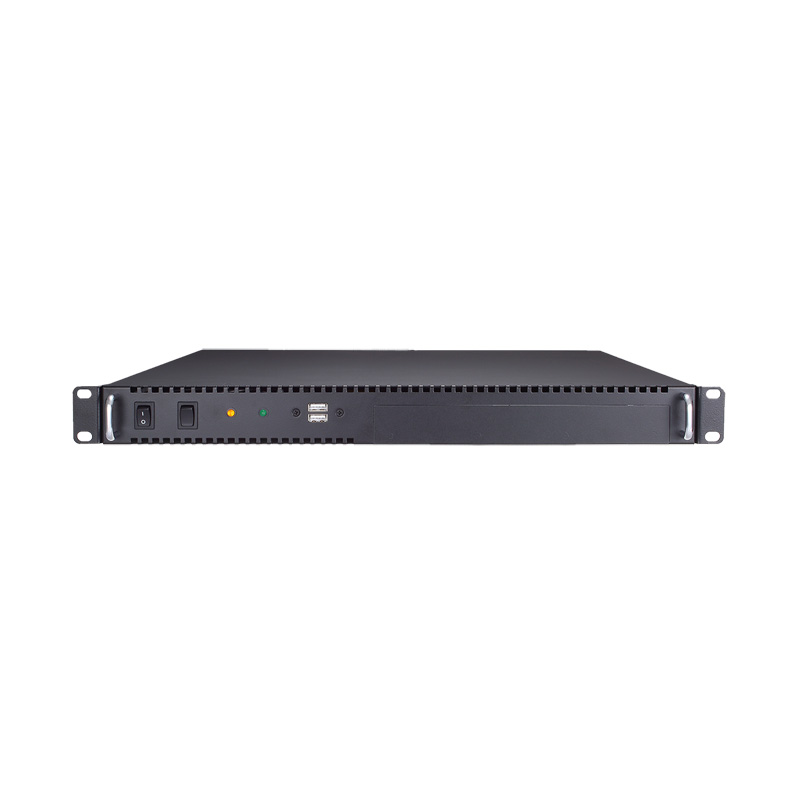

| Construction | Heavy-Duty Cold-Rolled Steel |
|---|---|
| Drive Capacity | Internal 2 x 3.5″ HDD, or internal 2 x 2.5″ HDD |
| Front Panel Indicators | 1 x Power On/Off; 1x HDD |
| Front Panel Controls | 1 x Power On/Off; 1x System Reset |
| Front Panel Connectors |
2 x USB 2.0 |
| Cooling Fans | 2 x 4cm ball-bearing fan |
| Expansion Interface |
1 x PCIe x16 slot via riser card |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |

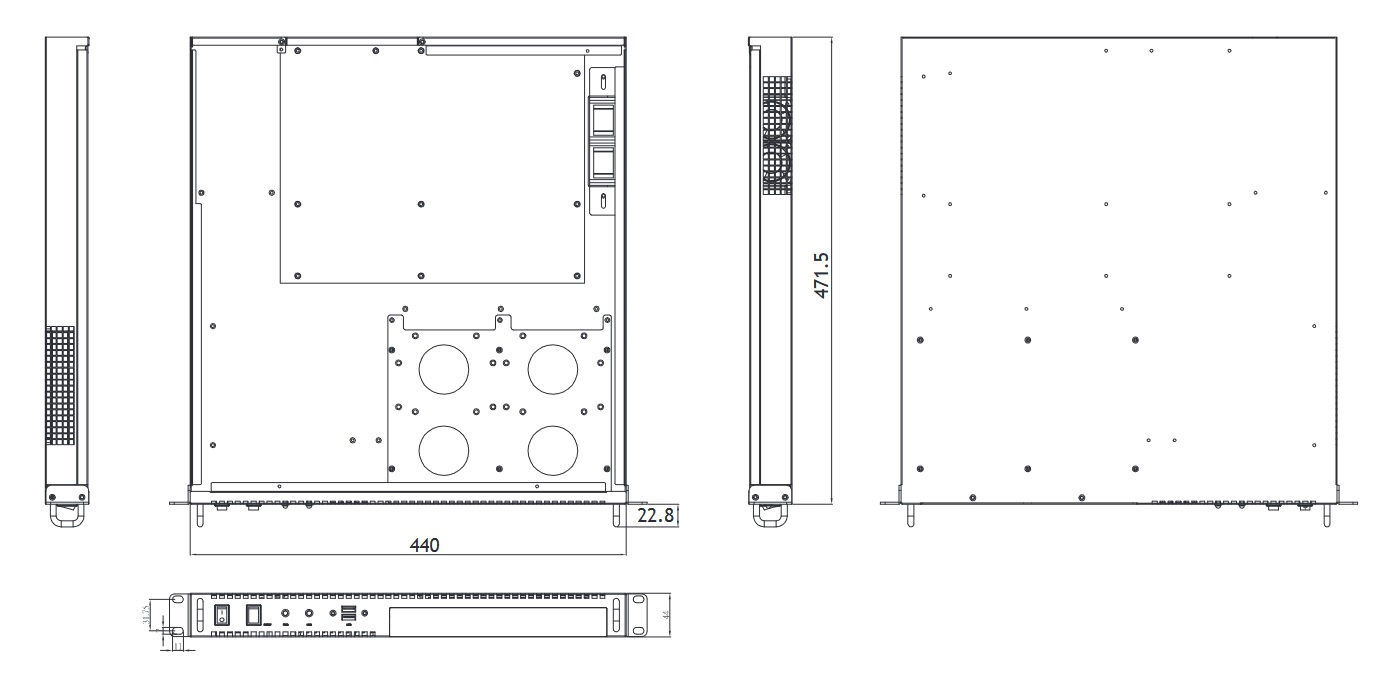

| Dimensions (W x D x H) | 440 mm (18.98″) (W) x 471.50 (18.48″) (D) x 44 (1.73″) (H) |
