Description
General
| Model | R5033-2 |
|---|---|
| Chassis Type | Industrial Rackmount |
| Rack Units | 2U |
| Color | Black |
Expansion Configuration
| PCI | 4x PCI |
|---|---|
| PCIex16 | 1x PCIex16 |
| PCIex1 | None |
Alternate Expansion Configuration
| PCI | None |
|---|---|
| PCIex16 | 1x PCIex16 |
| PCIex1 | 4x PCIex1 |
Processor
| CPU | 12th/13th/14th Gen Core i9, i7, i5, i3 |
|---|---|
| CPU Socket | LGA1700 |
| Chipset | Intel H610E |
System Memory
| Standard RAM | 8 GB |
|---|---|
| Maximum RAM | 64 GB |
| RAM Type | DDR5 (Non-ECC) |
| RAM Socket | 2x 288-pin DIMM |
Hard Drive
| SSD | 250GB SSD |
|---|
Optical Drive
| Optical Drive | Optional DVDRW |
|---|
System Power
| Power Supply | 350W |
|---|---|
| Power Supply Type | PS2 |
| Power Input | 100/240 VAC Auto-Switching |
BIOS
| BIOS Type | AMI |
|---|
Graphics
| GPU | Intel UHD Graphics |
|---|---|

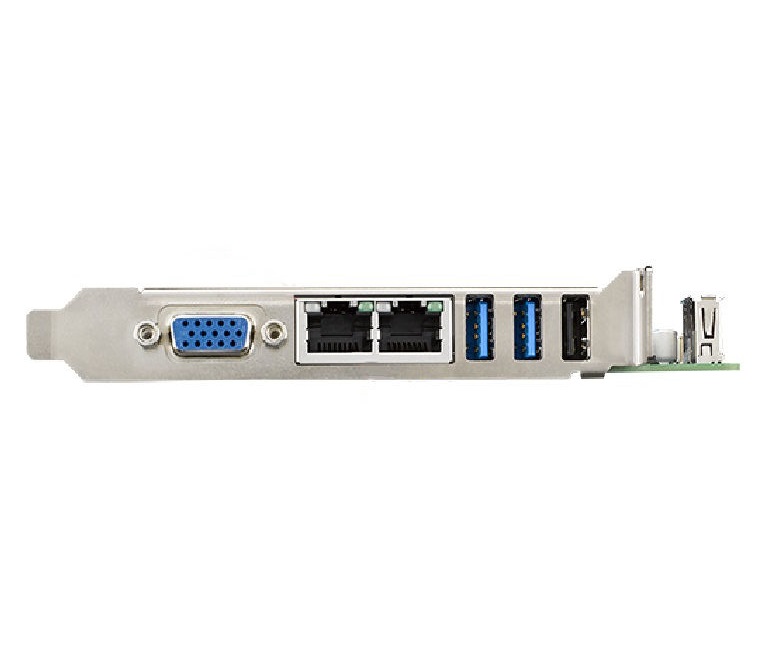

| GPU Interface | 1x VGA Rear I/O; 2x DVI-D/HDMI/DP via Internal Headers (2nd and 3rd display via optional cables) |
Ethernet
| Ethernet Port 1 | 10/100/1000/2500 Mbps with Intel i226V |
|---|---|
| Ethernet Port 2 | 10/100/1000/2500 Mbps with Intel i226V |
USB
| USB 2.0 | 6x USB 2.0: 2x Chassis Front I/O; 1x Type A Internal Connector; 1x Rear I/O; 2x Internal Pin Headers) |
|---|---|
| USB 3.2 |
4x USB 3.2: 2x USB 3.2 rear IO; 2x USB 3.2 Internal Pin Headers |
I/O
| SATA | 4x SATA-600 |
|---|---|
| PS/2 | N/A |
| COM | 2x RS-232 Serial via Internal Pin Headers |
| M.2 | N/A |
| GPIO | 8bit |
| IrDA | N/A |
RAID
| RAID | N/A |
|---|
Chassis Characteristics
| Construction | Heavy-Duty Cold-Rolled Steel |
|---|---|
| Drive Capacity | 1x 5.25″ Slim DVD (External); 2x 3.5″ (External/Internal) |
| Expansion Capacity | 6-slot, up to 5 available expansion slots |
| Front Panel Indicators | 1x Power On/Off; 1x HDD; 1x Temperature; 1x Fan |
| Cooling Fans | 2x 8cm |
| Operating Temperature | 0°C ~ 60°C (32°F ~ 1040°F) |
| Non-Operating Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Relative Humidity | 10% ~ 85% @ 40° C, non-condensing |
| Shock Resistance | 10G (11ms duration, half sine wave) |
| Vibration Resistance | 0.5 Grms |
| Dimensions (W x D x H) | 19″ (482mm) x 17.8″ (451mm) x 3.5″ (88mm) |
