Description
General
| Model | R490-3 |
|---|---|
| Chassis Type | Industrial Rackmount |
| Rack Units | 3U |
| Color | Black |
Expansion Configuration
| PCI | None |
|---|---|
| PCIex16 | 4x PCIex16 3.0, Running at (16/NA/16/NA or 8/8/8/8) |
| PCIex8 | None |
| PCIex4 | None |
| PCIex1 | 1x PCIex1 3.0 |
| M.2 Slot 1 |
PCI-E 3.0 x4 2260/2280/221102260/2280/22110 M Key (Raid 0-1 capable) |
| M.2 Slot 2 |
PCI-E 3.0 x4 2260/2280/221102260/2280/22110 M Key (Raid 0-1 capable) |
Processor
| CPU | 10th Gen Core i9 i7, i5, i3 Processor 140W TDP |
|---|---|
| CPU Socket | LGA1200 |

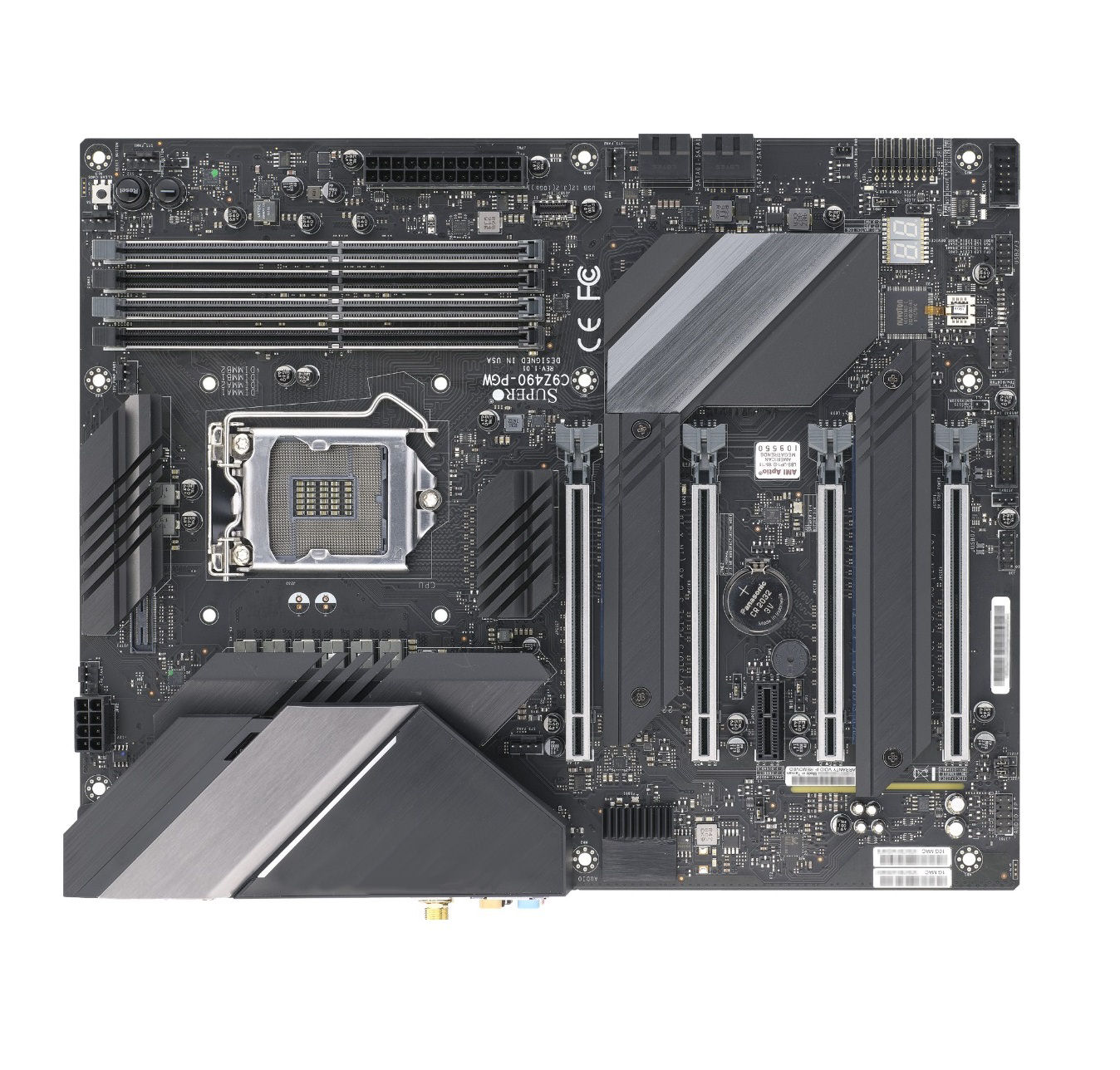

| Chipset | Intel Z490 |
System Memory
| Standard RAM | 8 GB |
|---|---|
| Maximum RAM | 128 GB |
| RAM Type | DDR4 |
| RAM Socket | 4x 288-pin DIMM |
| Memory Support |
UDIMM Non-ECC |
Hard Drive
| SSD | 250GB SSD |
|---|
Optical Drive
| Optical Drive | Optional DVDRW |
|---|
System Power
| Power Supply | 500W |
|---|---|
| Power Supply Type | PS2 |
| Power Input | 100/240 VAC Auto-Switching |
BIOS Features
| BIOS Type | 256MB SPI Flash with AMI BIOS |
|---|---|
| TPM | 1x TPM 2.0 Header |
| Power Settings |
Wake on LAN |
Graphics
| GPU | Intel UHD Graphics |
|---|---|

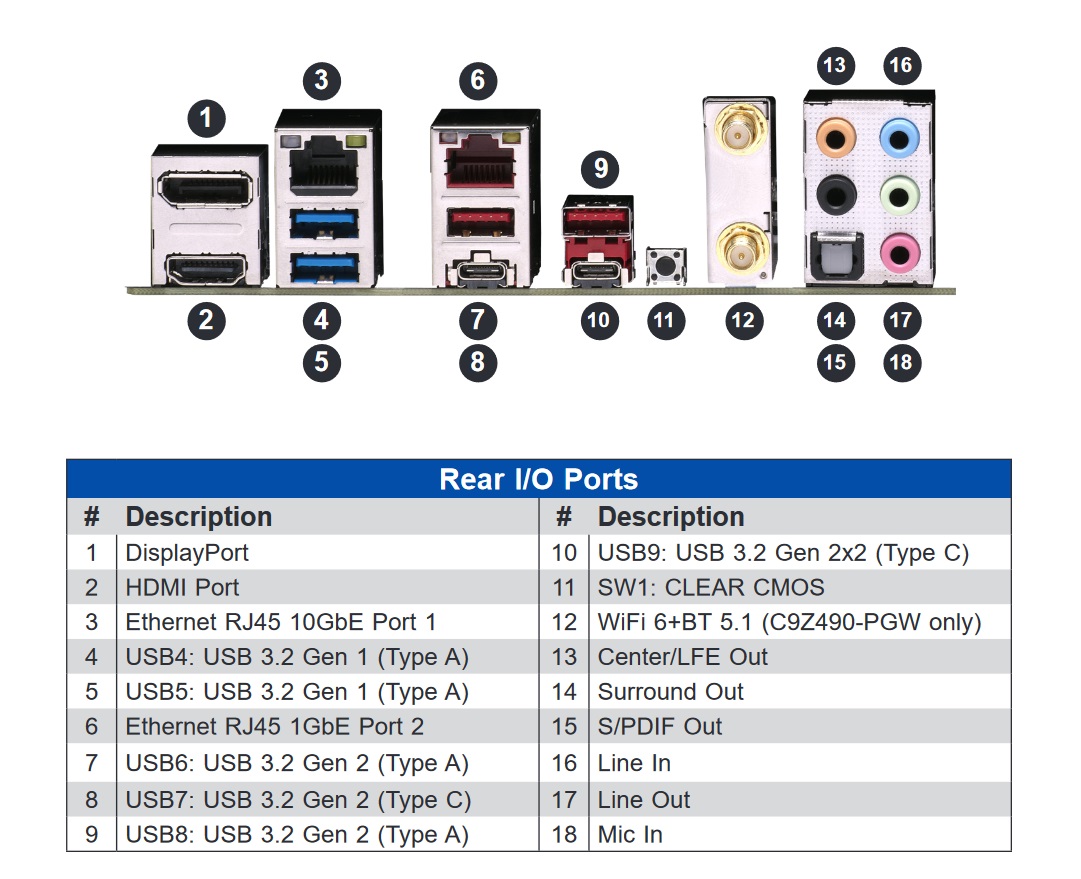

| GPU Interface | 1x DisplayPort, 1x HDMI |
Ethernet
| Ethernet Port 1 | Aquantia® AQC107 10G Ethernet Controller |
|---|---|
| Ethernet Port 2 | Intel® single Ethernet PHY i219V |
| WiFi | Wifi 6+BT 5.1 |
USB
| USB 2.0 | 4x USB 2.0: 4x USB 2.0 Internal Header (2.54mm pitch) |
|---|---|
| USB 3.2 | 4x USB 3.2 (Gen1): 2x Rear I/O Type A, 2 x Internal Header routed to Front I/O |
| USB 3.2 | 4x USB 3.2 (Gen2): 1x Rear Type C, 1x Via Internal Header, 2x Rear Type A |
| USB 3.2 | 1x USB 3.2 (Gen2x2) Rear Type C |
I/O
| SATA | 4x SATA-600 |
|---|---|
| Serial | 1 x RS-232/422/485 Internal Header |
| Audio | ALC 1220 HD Audio (Line in, Line out, Mic, Surround) 1x x S/PDIF (Internal Header) |
RAID
| RAID | SATA 0, 1, 5, 10 RAID Onboard, M.2 NVMe RAID 0-1 |
|---|
Chassis Characteristics
| Construction | 1.6mm SECC Zinc-Coated Steel |
|---|---|
| Drive Capacity | 1x 5.25″ (External); 1x 3.5″ (External); 3x 3.5″ (Internal) |
| Front Panel Indicators | 1x Power On/Off; 1x HDD |
| Front Panel Controls | 1x Power On/Off; 1x System Reset |
| Cooling Fans | 1x 6cm; 2x 8cm |
| Watchdog Timer | 1 ~ 255 sec. |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Dimensions (W x D x H) | 19″ (482.6mm) x 15″ (381mm) x 5.19″ (131.8mm) |
