Description
General
| Model | IEBX962-525 |
|---|---|
| Color | Silver Black |
Expansion Configuration (Option 1)
| PCIex4 | 1 x PCIex4 |
|---|---|
| PCIex16 | 1 x PCIex16 (Gen 3) |
| M.2 | 1 x M.2 Key M 2280 socket (PCIe Gen3 x4) for NVMe SSD |
| M.2 | 1 x M.2 Key B 3050 socket |
| SIM | 1 x SIM Slot |
Expansion Configuration (Option 2)
| PCI | 1 x PCI |
|---|---|
| PCIex16 | 1 x PCIex16 (Gen 3) |
| M.2 | 1 x M.2 Key M 2280 socket (PCIe Gen3 x4) for NVMe SSD |
| M.2 | 1 x M.2 Key B 3050 socket |
| SIM | 1 x SIM Slot |
Expansion Configuration (Option 3)
| PCI | 2x PCI |
|---|---|
| PCIe Mini Card Slot | 1 x Full-size PCI Express Mini Card slot (PCIe + USB signal) |
| M.2 | 1 x M.2 Key M 2280 socket (PCIe Gen3 x4) for NVMe SSD |
| M.2 | 1 x M.2 Key B 3050 socket |
| SIM | 1 x SIM Slot |
Flexible System I/O Window (Optional)
| COM Module 1 |
4 x RS-232/422/485 module (default RS-232) |
|---|---|
| COM Module 2 |
4 x RS-232/422/485 with isolated 2kVDC module |
| DIO Module |
2 x RS-232/422/485 with isolated 1.5kVDC & 8-in/8-out with isolated 1.5kVDC DIO module |
| Ethernet/USB Module |
1 x 10/100/1000 Mbps (Intel® I211-AT) Ethernet, 2 x RS-232/422/485 and 2 x USB 3.0 (1 USB 3.1 Gen2, 1 USB 2.0 signal) module |
Processor
| CPU | Intel® Core™ 8th/9th gen i7/i5/i3 processor, up to 65W |
|---|---|
| Chipset | Q370 |
| Socket | LGA1151 |
System Memory
| Standard RAM | 8GB |
|---|---|
| Maximum RAM | 64GB |
| RAM Type | DDR4 U-DIMM |
| RAM Socket | 2x 240-pin SO-DIMM |
Hard Drive
| SSD | 250 GB |
|---|
System Power
| Power Input | 24 VDC (uMin=19V/uMax=30V) |
|---|---|
| Power Protection | OVP (over voltage protection); OCP (over current protection); Reverse Protection |
BIOS
| BIOS Type | AMI |
|---|
Graphics
| GPU Interface | 1x HDMI, 1x VGA (Dual-Display Capable) |
|---|---|
| Onboard Graphics |
Provided by Intel UHD Graphics on processor |
| PCIe GPU Support |
Support for NVIDIA® Tesla T4 GPU card and NVIDIA® GPU card, up to 125W |
USB
| USB 3.1 | 4x USB 3.1 Gen.2 |
|---|---|
| USB 2.0 | 2x USB 2.0 + 1x Internal, 180D type A for license key up to 30mm |

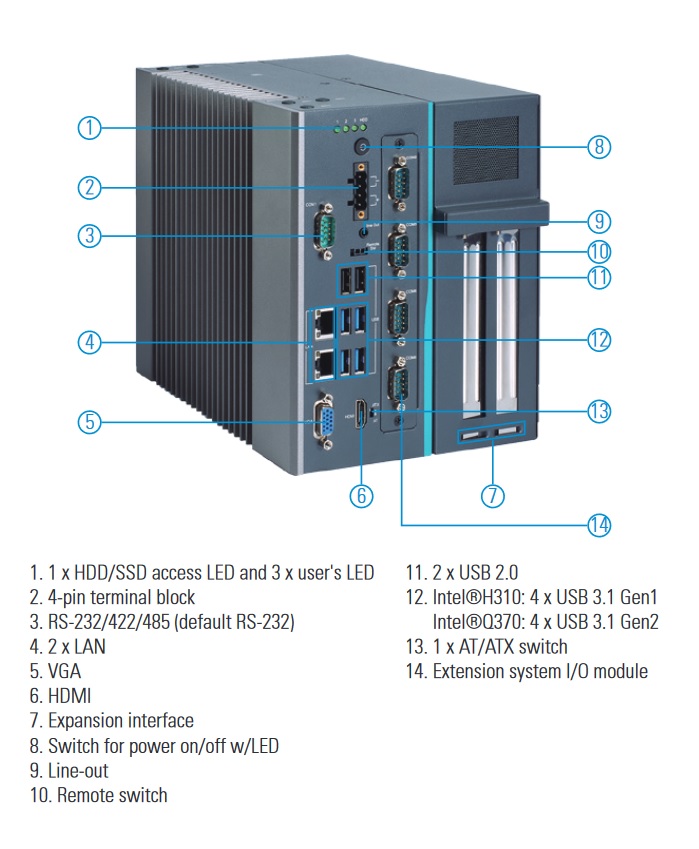

I/O
| Ethernet | 1 x Intel® 2.5 Gigabit LAN (Intel® I225-LM); 1 x Intel® Gigabit LAN (Intel® I219-LM) |
|---|---|
| Audio | 1 x Line-out |
| Serial | 1 x RS-232/422/485 (default RS-232, COM1) |
| Remote | 1 x Remote power switch |
| Power Connection |
1 x 4-pin terminal block |
System Characteristics
| Construction | Aluminum Extrusion and Heavy-Duty Steel |
|---|---|
| Drive Capacity | 2x 2.5″ SATA External drive bay, (Max. up 9.5 mm height) Supports RAID 0,1
1 x M.2 Key M 2280 socket (PCIe Gen3 x4) for NVMe SSD |
| TPM | TPM 2.0 |
| Mounting Options | Wall Mount |
| Front Panel Indicators | 1x SSD/HDD access LED, 3 x User’s LED |
| Front Controls | 1x ATX Power Switch |
| Cooling Fans | 1x Optional Internal Fan |
| Watchdog Timer | N/A |
| Operating Temperature | -10°C to +60°C (+14°F to +140°F) with 9th/8th gen Intel® Core™ and W.T. HDD/SSD* |
| Humidity | 10% – 90%, non-condensing |
| Shock Vibration | N/A |
| Vibration Endurance | N/A |
| Weight | 4.382 kg (9.66 lb)/5.346 kg (11.80 lb) |

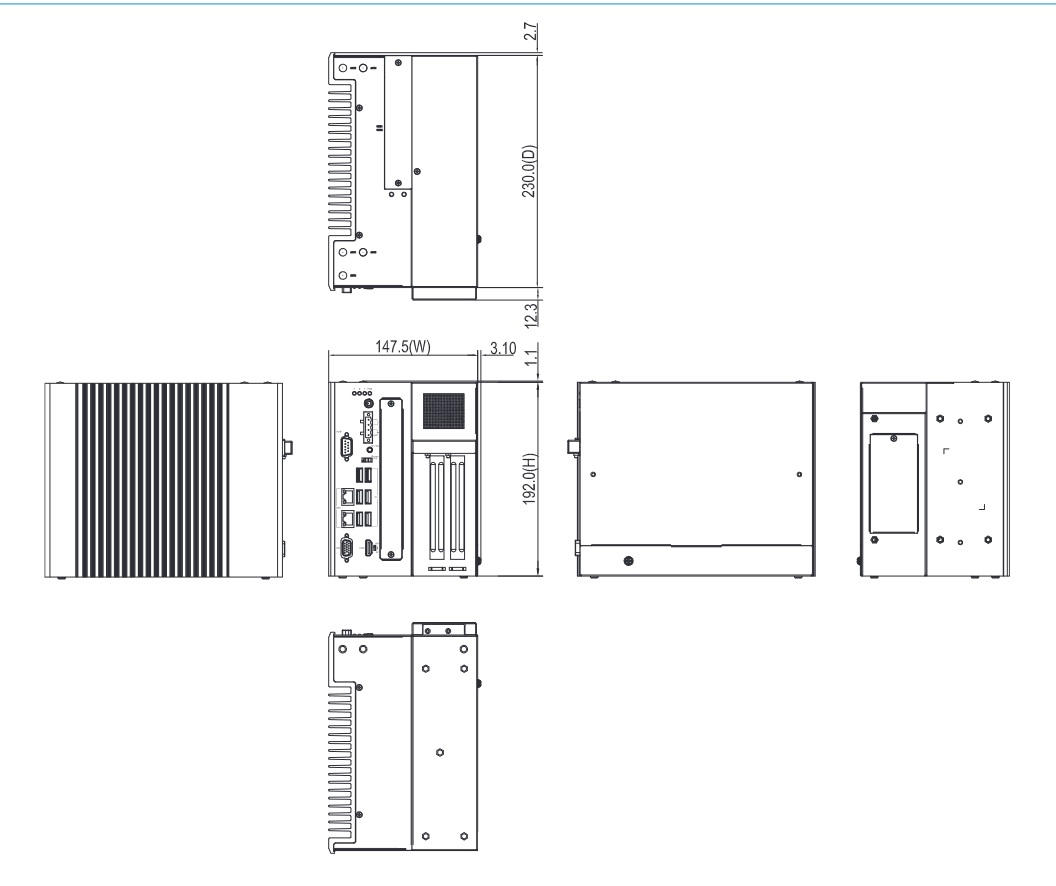

| Dimensions |
147.5 mm (5.80″) (W) x 192 mm (7.54″) (H) x 230 mm (9.04″) (D) |
Compliance
| Certification | CE Compliance, FCC |
|---|
