Description
General
| Model | EBX710-521 |
|---|---|
| Color | Silver |
Expansion Configuration
| Mini PCIe | 2 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) |
|---|---|
| PCIe | 1 x PCIe x4 |
| SIM Card | 2 x SIM slot (internal) |
Processor
| CPU | 8th/9th gen Intel® Core™ i7/i5/i3, Xeon ® processors (35W) |
|---|---|
| CPU Socket | LGA1151 |
| Chipset | C246 |
System Memory
| Standard RAM | 8GB |
|---|---|
| Maximum RAM | 64GB |
| RAM Type | DDR4 |
| RAM Socket | 2 x 260-pin SO-DIMM (ECC available for Xeon Processors) |
Operating System
| Supported Operating Systems | Windows 10 |
|---|
Hard Drive
| Wide Temp SSD | 128 GB |
|---|---|
| RAID Option |
0/1 RAID |
System Power
| Power Connection |
Phoenix type VDC power input connect |
|---|---|
| Power Input | 24 VDC |
| Power AT/ATX | 1x AT/ATX Quick Switch |
| Power Remote | 1x Remote Switch |
BIOS
| BIOS Type | AMI UEFI |
|---|
Graphics
| GPU Interface | 1 x HDMI; 1 x DisplayPort; 1x DVI-D (Triple-Display Output) |
|---|
USB
| USB 3.1 (Gen 2) |
4x USB 3.1 |
|---|---|
| USB 3.1 (Gen 1) |
2x USB 3.1 |
I/O
| Ethernet | 6 x 10/100/1000 Mbps Ethernet (5x Intel® i210-IT, 1x i219-LM) |
|---|---|
| Wifi | Optional 802.11AC+BT PCIe; 3G LTE Card Add-on |
| Serial | 2 x RS-232/422/485 |
| Audio | N/A |
| Flexible IO window | 1 x Flexible I/O window (Default: 2 x DB9 half cut bracket) |
System Chassis Characteristics
| Construction | Aluminum Extrusion and Heavy-Duty Steel with IP40 Protection |
|---|---|
| Drive Capacity | 2 x 2.5” SATA HDD Removable drive bay (max. up 9.5 mm height); 1x mSATA |
| Front Panel Indicators | 1x Green LED for System Power-On; 1x Green LED for HDD Active, 4 x Programmable Green LED |
| Front Panel Controls | 1x Reset Switch; 1x ATX Power Switch. |
| Cooling Fans | None, Fanless Cooling |
| TPM | TPM 2.0 |
| Wifi Antennae Port | 4 x SMA-type antenna connector (internal), 4x Wifi Antennae Punch out (external) |
| Operating Temperature | -40°C to 70°C (-40°F to 158°F) (with W.T. DRAM & SSD, CPU TDP 35W) |
| Vibration Endurance |
IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 – 500 Hz, 1 hr/axis) |
| Shock Vibration |
IEC 60068-2-27 (w/ SSD: 50G@wall mount, half-sine,11 ms duration |
| Relative Humidity | 10% to 90%, non-condensing |
| Weight (Net/Gross) |
4.8 kg (10.58 lb)/5.6 kg (12.34 lb) |

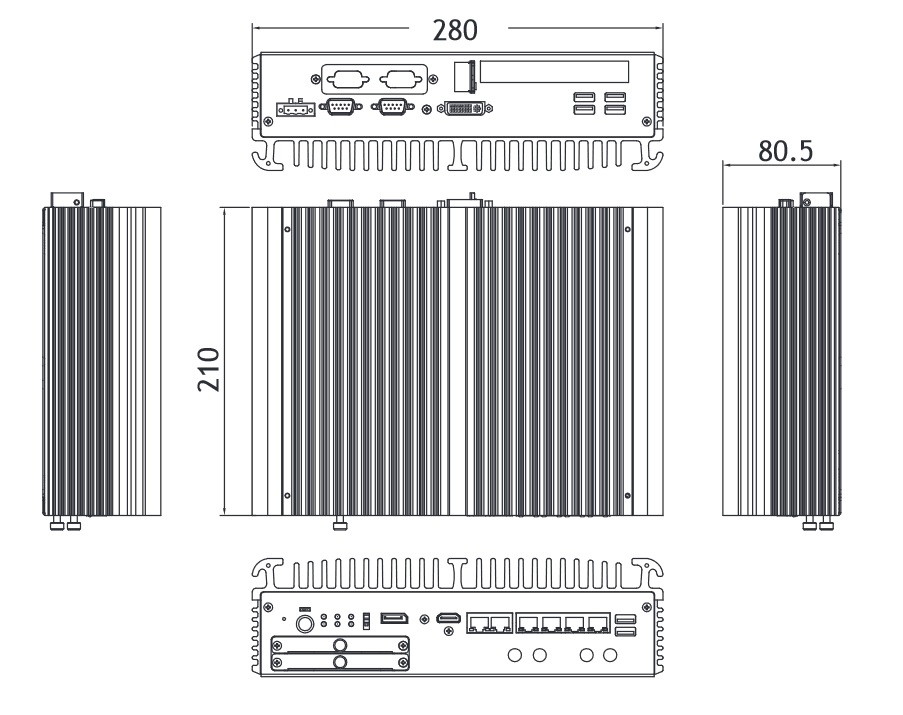

| Dimensions | 280 mm (11.02″) (W) x 210 mm (8.26″) (D) x 80.5 mm (3.16″) (H) |
| Certifications | CE, FCC Class A |
